HGW HYDRAULICS

6807-08-06-NWO-FG

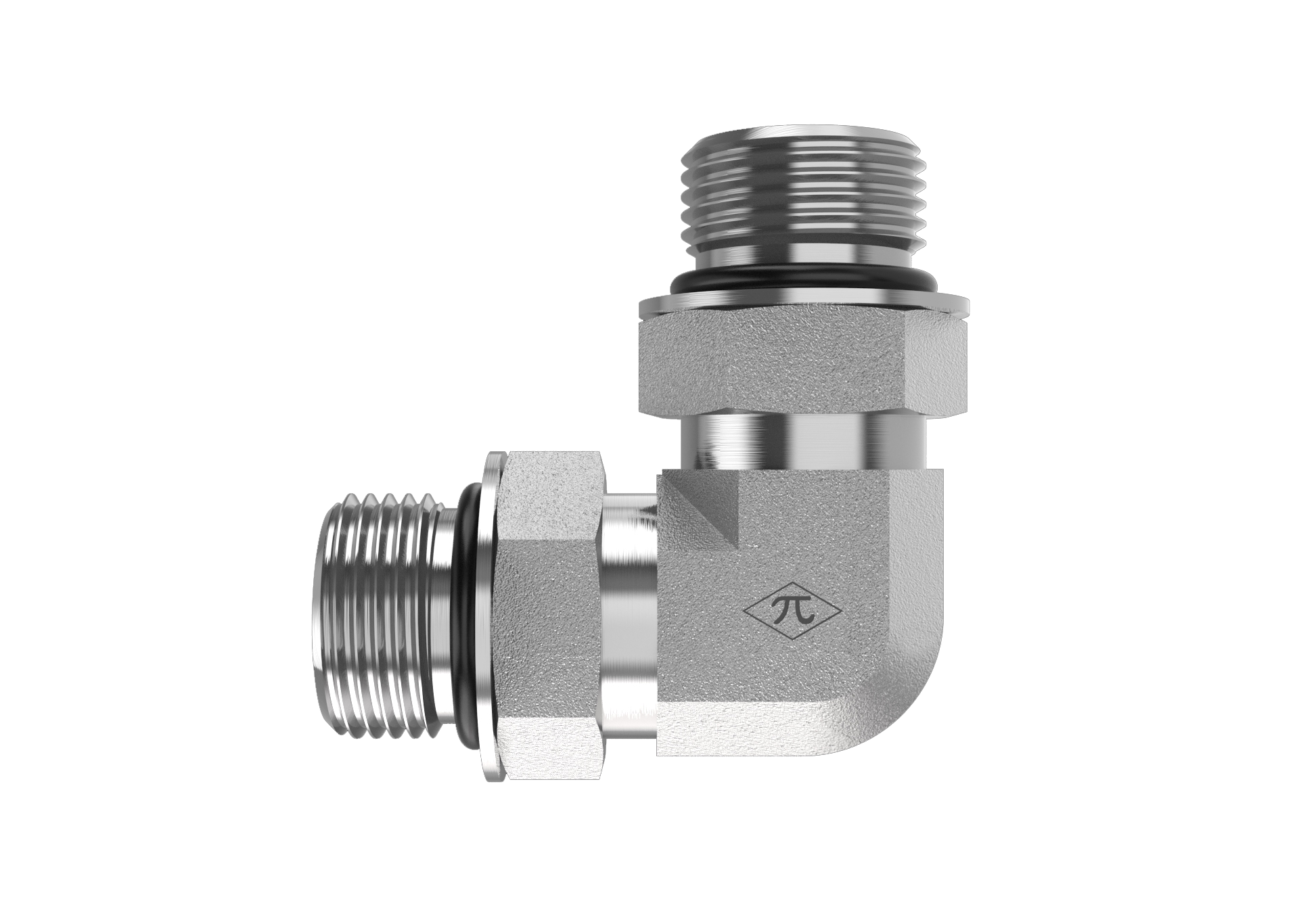

3/4-16 Male Adjustable ORB × 9/16-18 Male Adjustable ORB · Adjustable Elbow

The HGW 6807-08-06-NWO-FG is an adjustable elbow joining 3/4-16 male adjustable ORB to 9/16-18 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$7.08
(0) Write a Review
SKU:
6807-08-06-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926
Thread Type3/4-16 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.26 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
