HGW HYDRAULICS

6807-10-08-NWO-FG-VITON

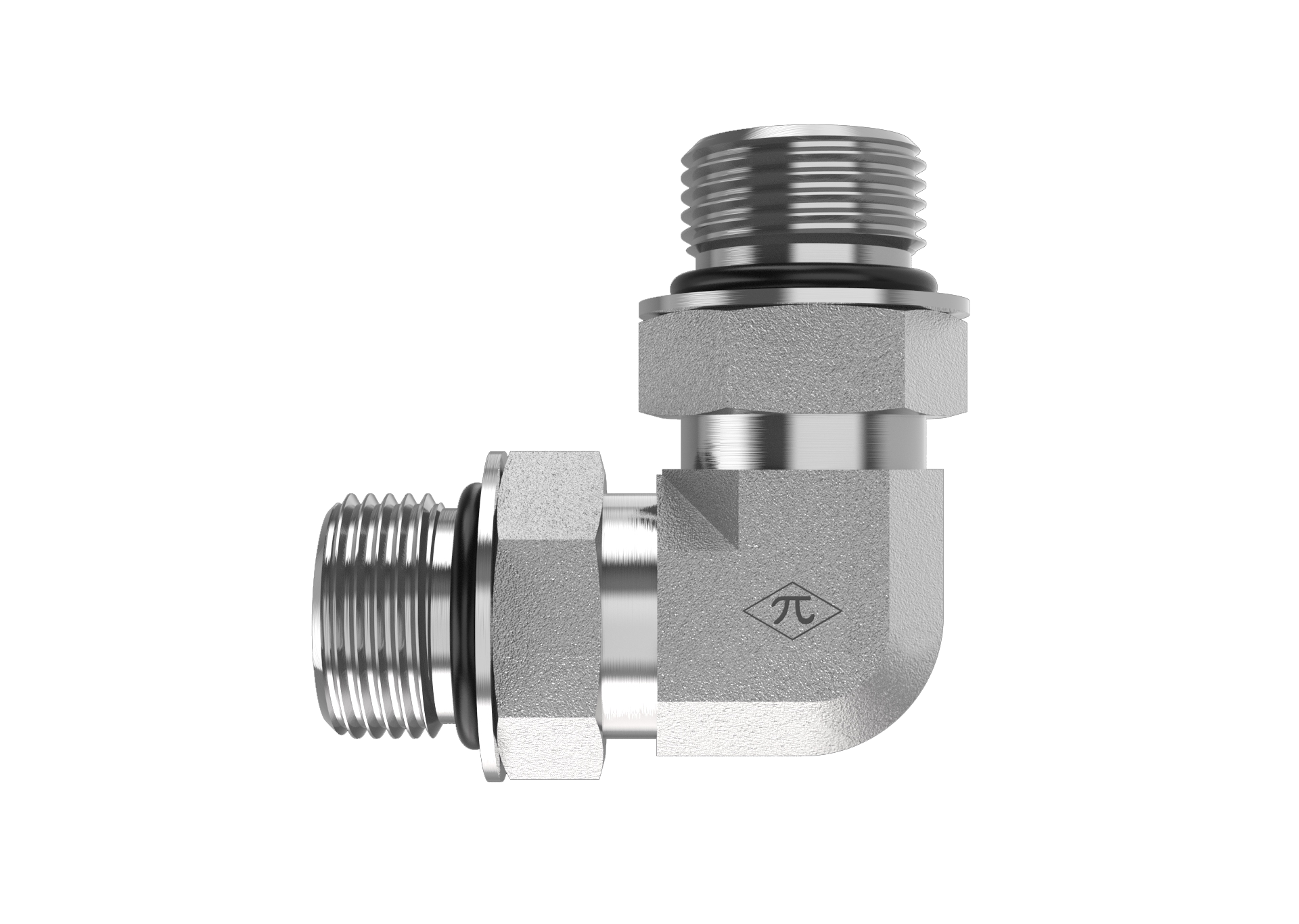

7/8-14 Male Adjustable ORB x 3/4-16 Male Adjustable ORB

6807-10-08-NWO-FG-VITON is a 7/8-14 Male Adjustable ORB x 3/4-16 Male Adjustable ORB in the 6807-NWO-FG Series. For connecting two SAE ports at a 90° angle with both ends adjustable to any clock position.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$23.96
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.40 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
