HGW HYDRAULICS

6807-10-10-NWO-FG

7/8-14 Male Adjustable ORB × 7/8-14 Male Adjustable ORB · Adjustable Elbow

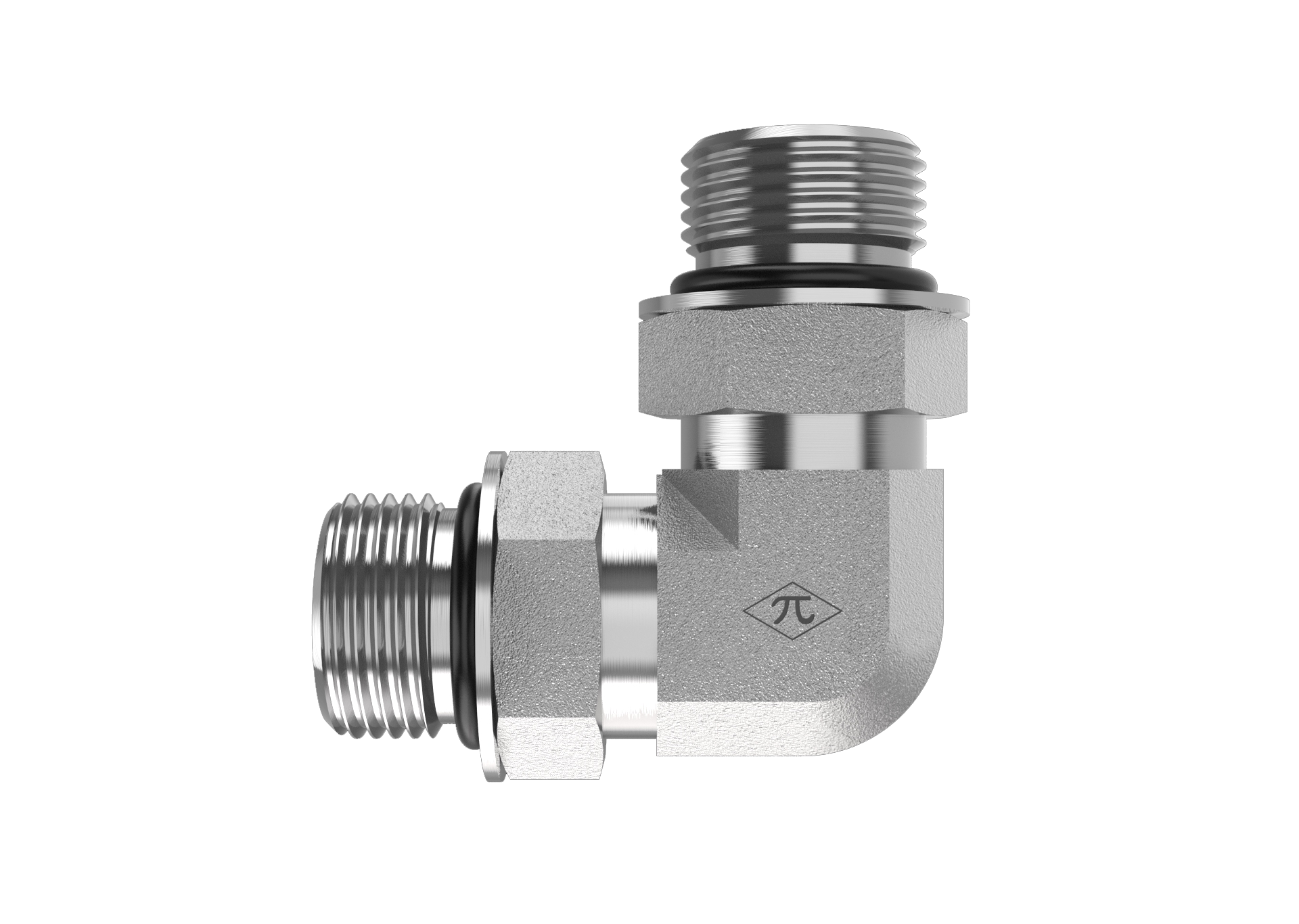

The HGW 6807-10-10-NWO-FG is an adjustable elbow joining 7/8-14 male adjustable ORB to 7/8-14 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$15.12
(0) Write a Review
SKU:
6807-10-10-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.45 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
