HGW HYDRAULICS

6807-12-12-NWO-FG

1-1/16-12 Male Adjustable ORB × 1-1/16-12 Male Adjustable ORB · Adjustable Elbow

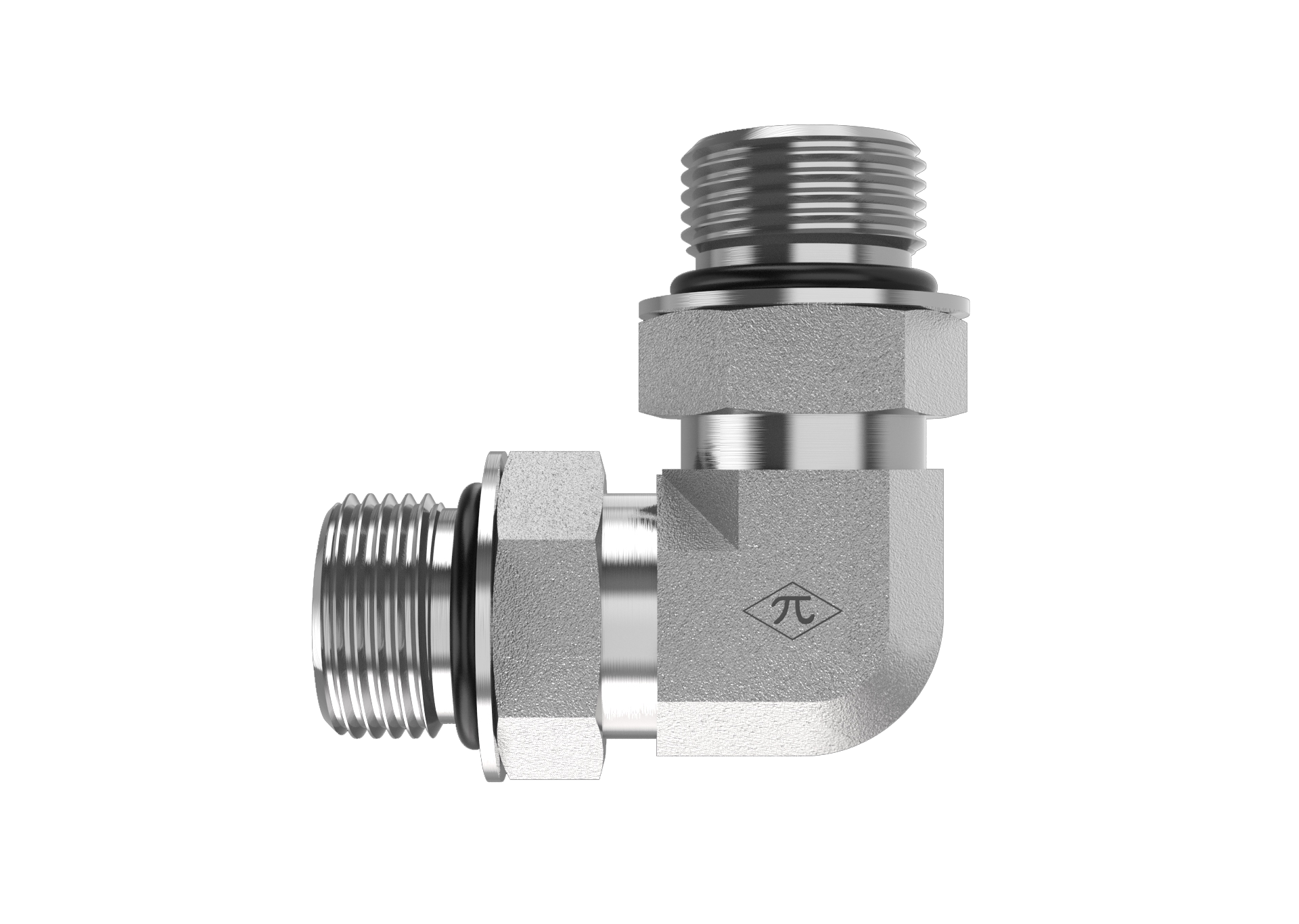

The HGW 6807-12-12-NWO-FG is an adjustable elbow joining 1-1/16-12 male adjustable ORB to 1-1/16-12 male adjustable ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$21.60
(0) Write a Review
SKU:
6807-12-12-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.75 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
