HGW HYDRAULICS

6807-16-16-NWO-FG-VITON

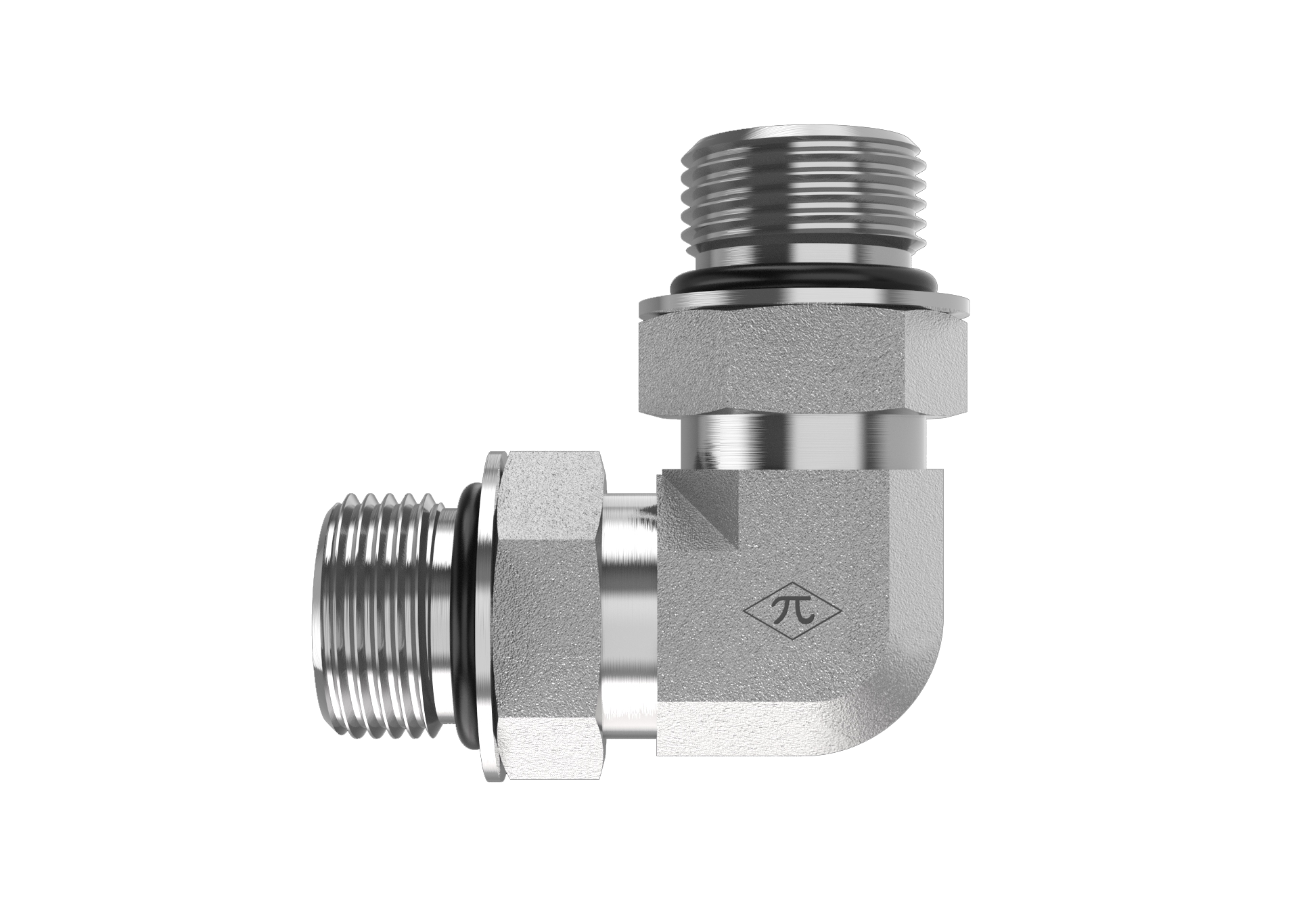

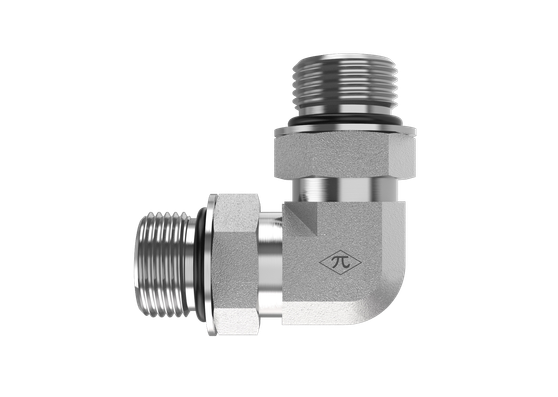

1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male Adjustable ORB

6807-16-16-NWO-FG-VITON is a 1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male Adjustable ORB in the 6807-NWO-FG Series. For connecting two SAE ports at a 90° angle with both ends adjustable to any clock position.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$117.99
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight1.11 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
