HGW HYDRAULICS

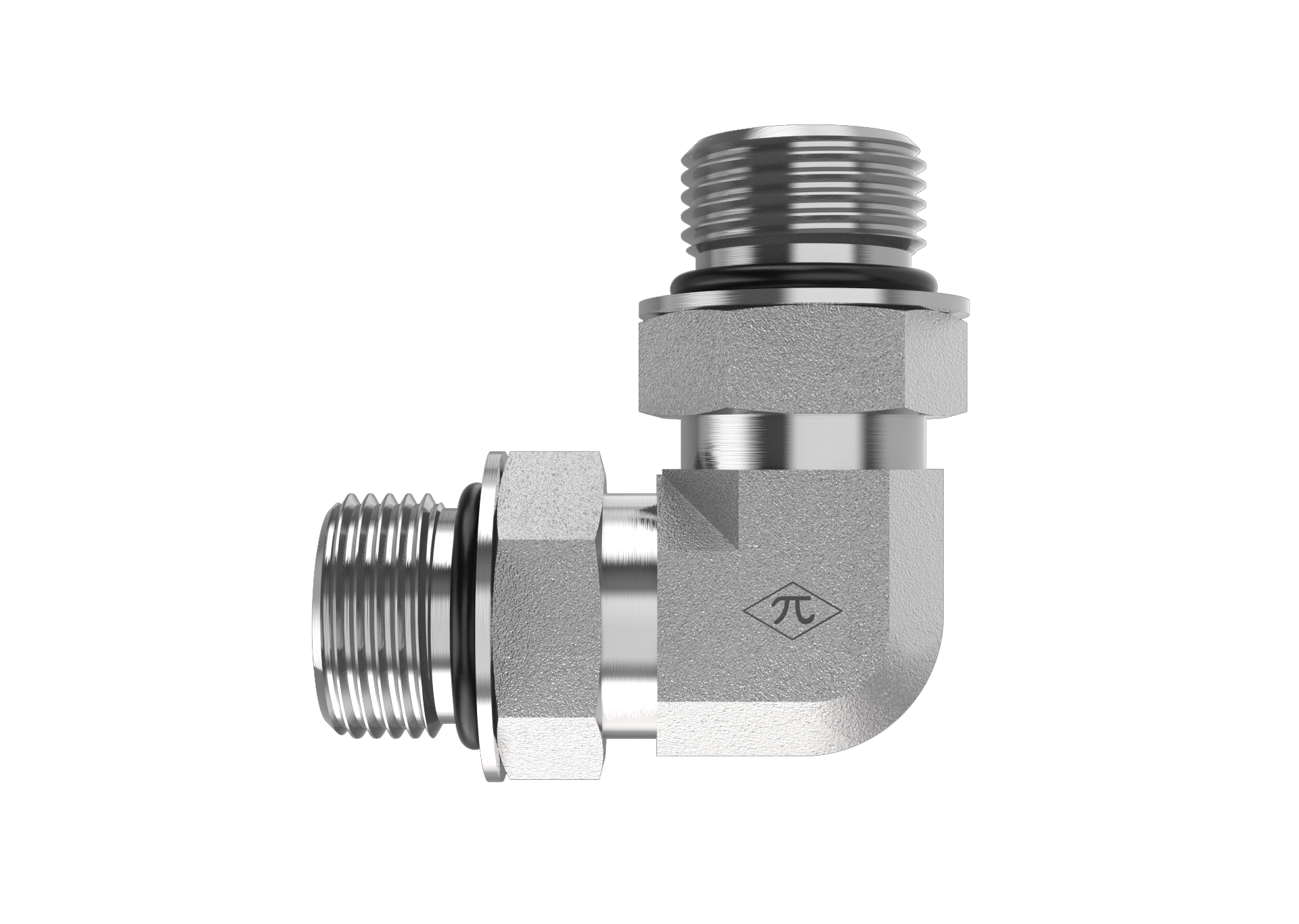

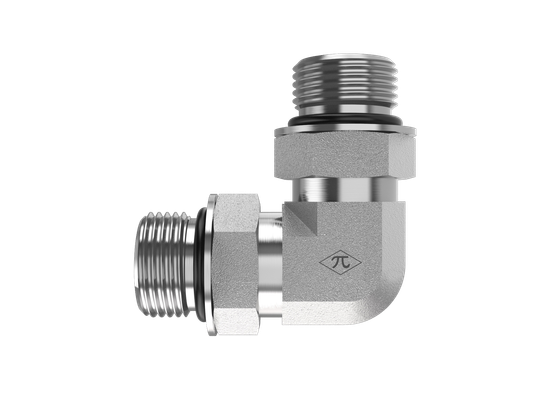

6807-16-16-NWO-SS

1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male Adjustable ORB

6807-16-16-NWO-SS is a 1-5/16-12 Male Adjustable ORB x 1-5/16-12 Male Adjustable ORB in the 6807-NWO-FG Series. For connecting two SAE ports at a 90° angle with both ends adjustable to any clock position.

  • Stainless Steel
  • Adjustable Elbow
  • None
$712.57
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Elbow
Weight1.03 lb
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
