HGW HYDRAULICS

6810-16-16-NWO-FG

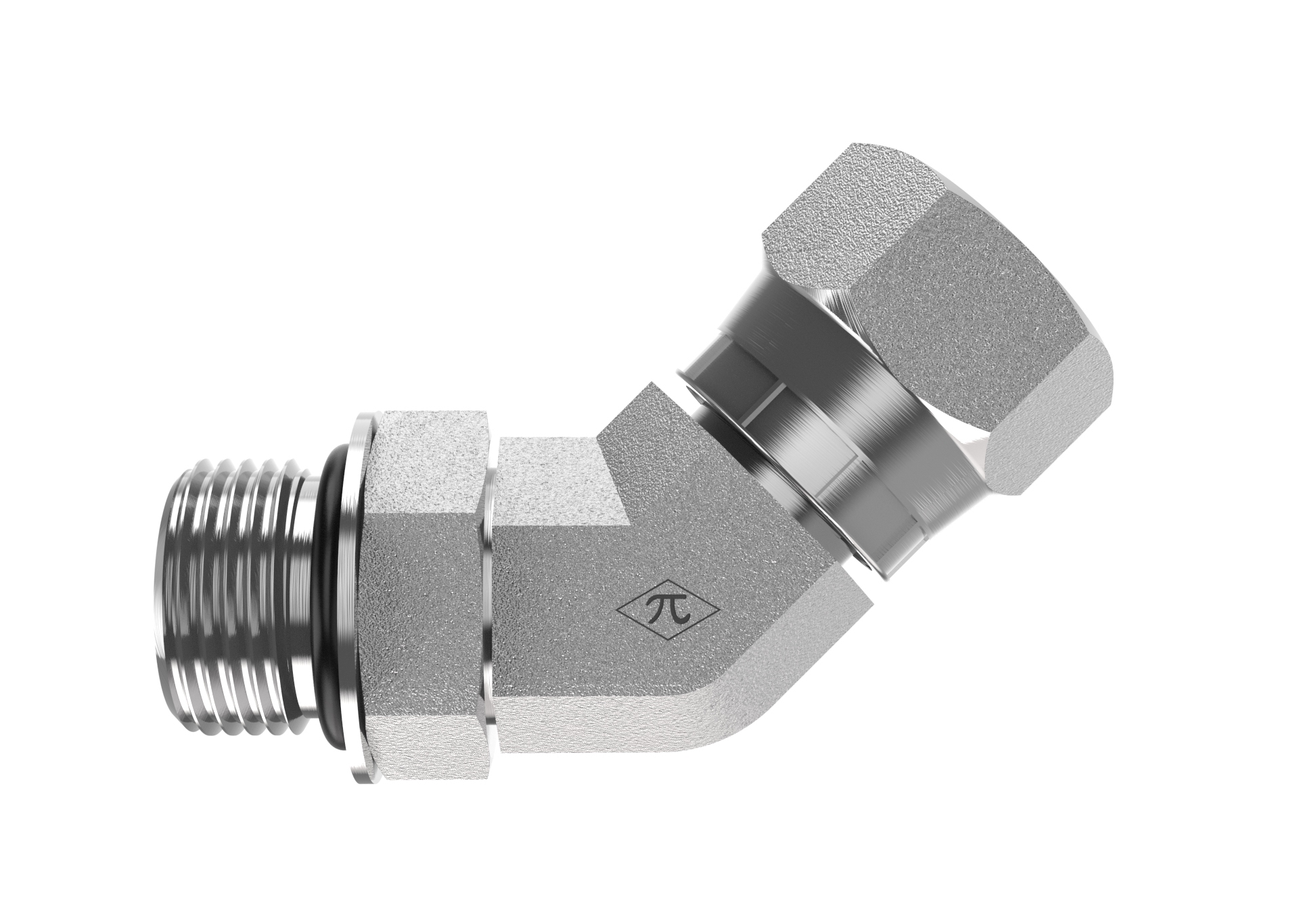

1-5/16-12 Male Adjustable O-Ring Boss x 1" Female JIC Swivel

6810-16-16-NWO-FG is a 1-5/16-12 Male Adjustable O-Ring Boss x 1" Female JIC Swivel in the 6810-NWO-FG Series. For connecting an O-ring boss port to a 37° flared tube or line at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$103.29
(0) Write a Review
SKU:
6810-16-16-NWO-FG

Product Details

Connection A
TypeMale Adjustable O-Ring Boss
Port Size1-5/16-12
StandardSAE J1453 / J514
Thread Type1-5/16-12 UN
Connection B
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.85 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
