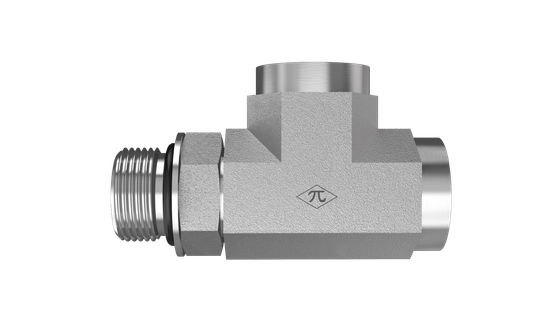

6835-NWO-FG series product image

6835-24-24-24-NWO-FG

1-7/8-12 Male Adjustable ORB x 1-7/8-12 Female ORB x 1-7/8-12 Female ORB

6835-24-24-24-NWO-FG is a 1-7/8-12 Male Adjustable ORB x 1-7/8-12 Female ORB x 1-7/8-12 Female ORB in the 6835-NWO-FG Series. SAE J1926 Adjustable O-Ring Boss Female Port Run Tee.

  • Steel
  • Trivalent Zinc
  • Adjustable Run Tee
$491.84
(0) Write a Review
SKU:
6835-24-24-24-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection C
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.99 lb
ShapeAdjustable Run Tee
Cross References
Parker24 AOG5JG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
