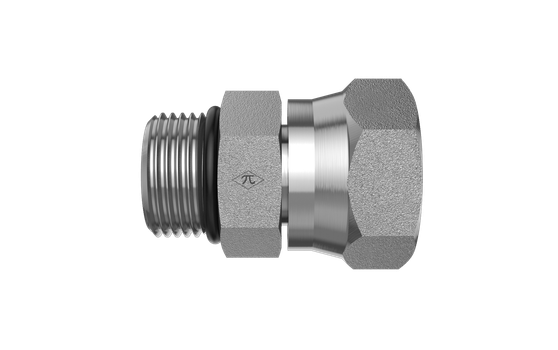

Google Merchant product image

HGW HYDRAULICS

6900-02-04-O-SS

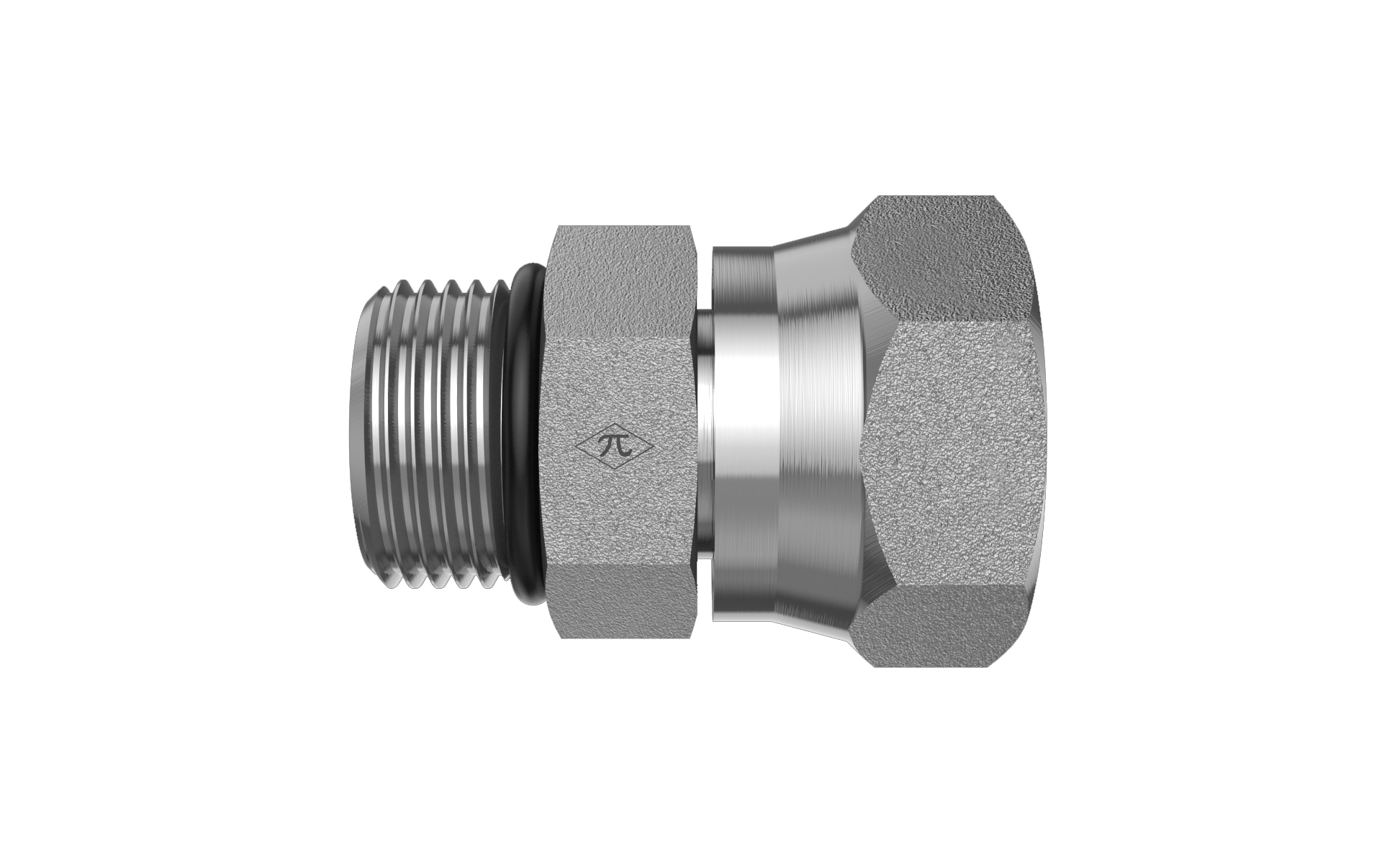

5/16-24 Male ORB x 1/4" Female NPSM Swivel

6900-02-04-O-SS is a 5/16-24 Male ORB x 1/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Stainless Steel
  • Swivel Connector
  • None
$167.52
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size5/16-24
StandardSAE J1926-3
Thread Type5/16-24 UNF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J476
Thread Type5/16-24 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.07 lb
PlatingNone
Cross References
Aeroquip259-2066-4-2
Parker0507-2-4-SS
SAE Ref.SAE J514 4-2 140157SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
