HGW HYDRAULICS

6900-04-02-O

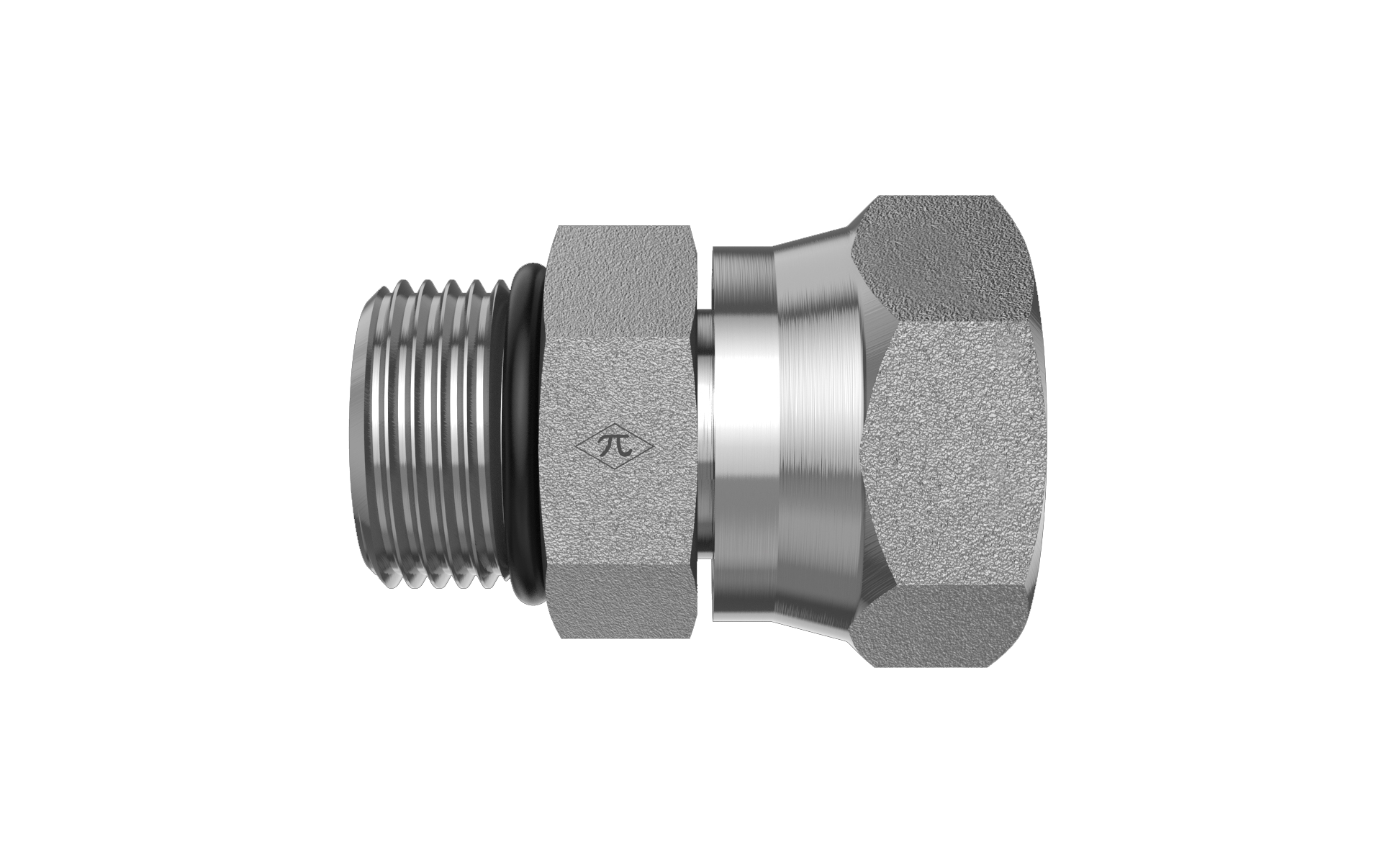

7/16-20 Male ORB × 1/8" Female NPSM Swivel · Swivel Connector

The HGW 6900-04-02-O is a swivel connector joining 7/16-20 male ORB to 1/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$4.49
(0) Write a Review
SKU:
6900-04-02-O

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926-3
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.06 lb
Cross References
Aeroquip2066-2-4S
Parker0507-4-2
SAE Ref.SAE J514 2-4 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
