HGW HYDRAULICS

6900-04-06-O-SS

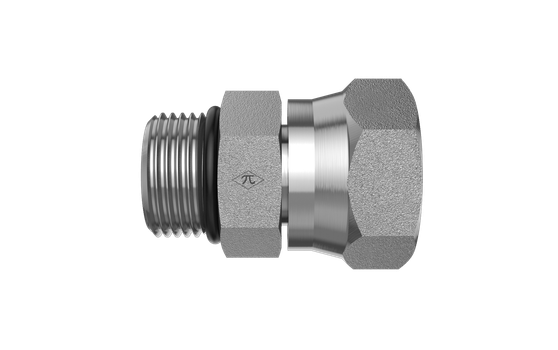

7/16-20 Male ORB x 3/8" Female NPSM Swivel

6900-04-06-O-SS is a 7/16-20 Male ORB x 3/8" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Stainless Steel
  • Swivel Connector
  • None
$167.52
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926-3
Thread Type7/16-20 UNF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.11 lb
PlatingNone
Cross References
Aeroquip259-2066-6-4
Parker0507-4-6-SS
SAE Ref.SAE J514 6-4 140157SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
