HGW HYDRAULICS

6900-06-04-O

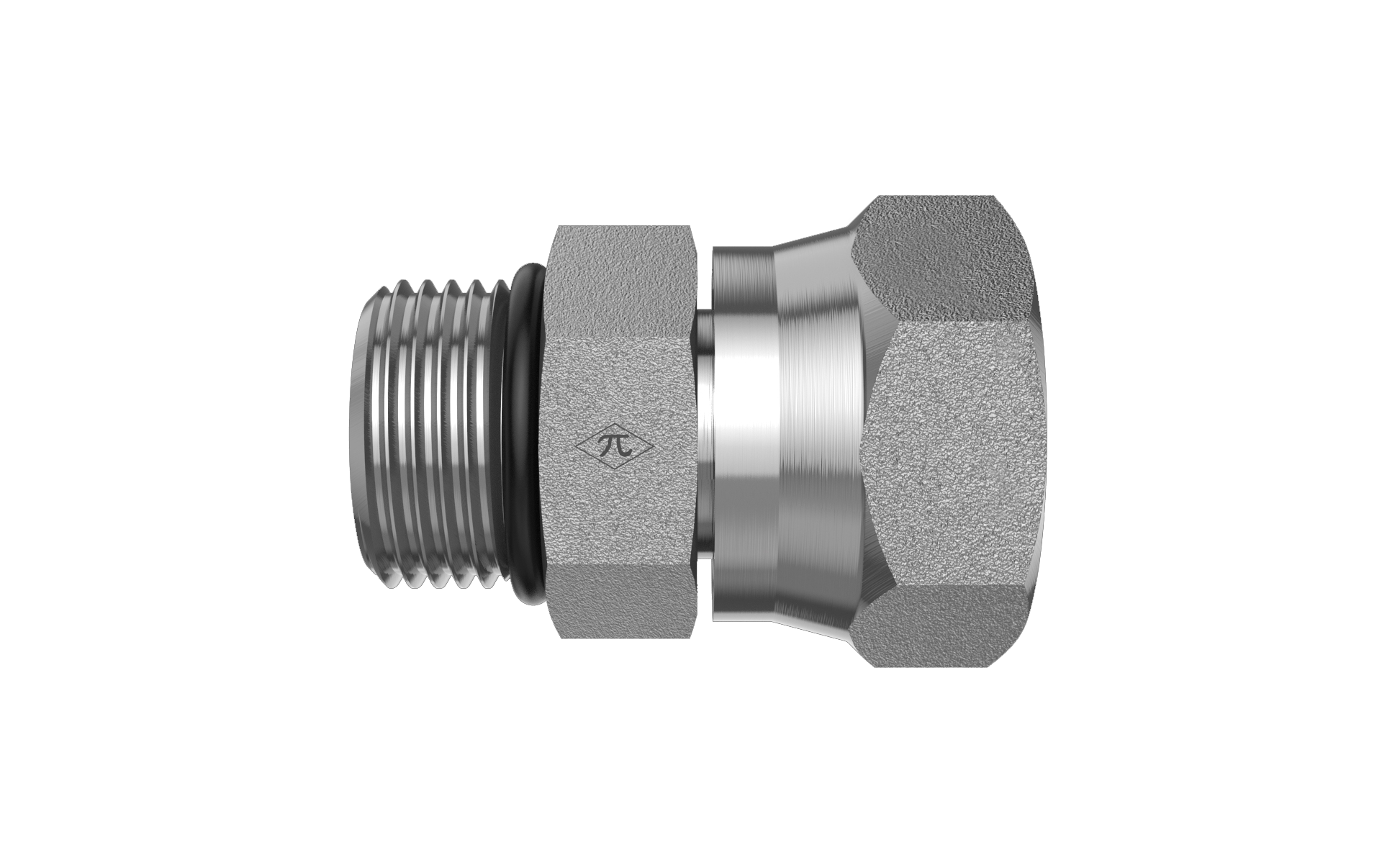

9/16-18 Male ORB x 1/4" Female NPSM Swivel

6900-06-04-O is a 9/16-18 Male ORB x 1/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$2.84
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926-3
Thread Type9/16-18 UNF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.09 lb
Cross References
Aeroquip2066-4-6S
Parker0507-6-4
SAE Ref.SAE J514 4-6 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
