HGW HYDRAULICS

6900-08-04-O

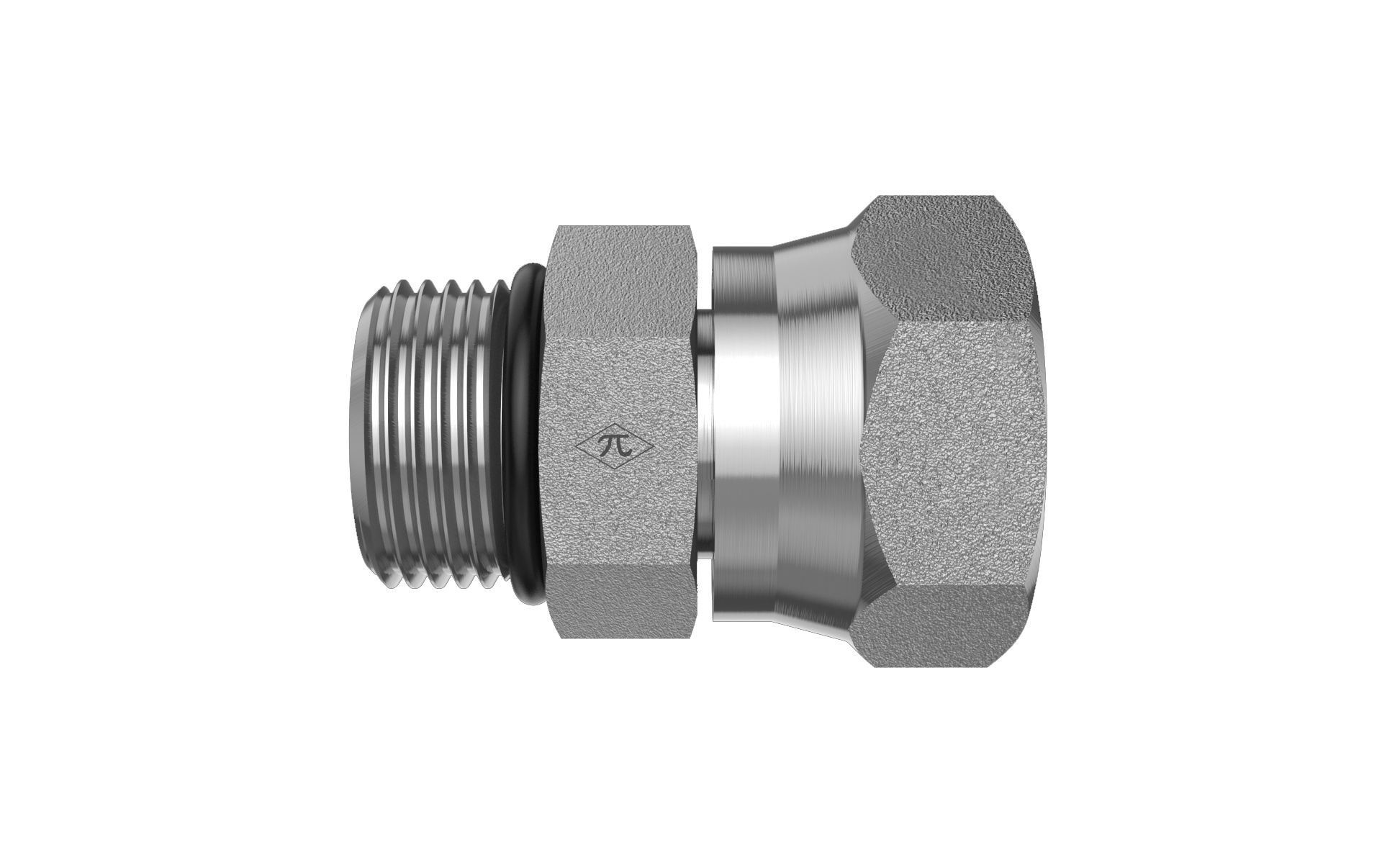

3/4-16 Male ORB x 1/4" Female NPSM Swivel

6900-08-04-O is a 3/4-16 Male ORB x 1/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$4.34
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926-3
Thread Type3/4-16 UNF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.13 lb
Cross References
Aeroquip2066-4-8S
Parker0507-8-4
SAE Ref.SAE J514 4-8 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
