HGW HYDRAULICS

6900-08-12-O

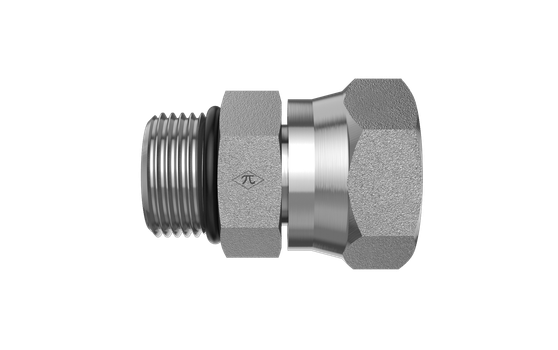

3/4-16 Male ORB × 3/4" Female NPSM Swivel · Swivel Connector

The HGW 6900-08-12-O is a swivel connector joining 3/4-16 male ORB to 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$7.53
(0) Write a Review
SKU:
6900-08-12-O

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926-3
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.26 lb
Cross References
Aeroquip2066-12-8S
Parker0507-8-12
SAE Ref.SAE J514 12-8 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
