HGW HYDRAULICS

6900-10-06-O

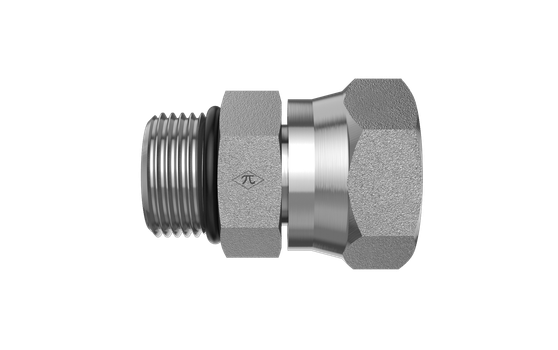

7/8-14 Male ORB x 3/8" Female NPSM Swivel

6900-10-06-O is a 7/8-14 Male ORB x 3/8" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$4.96
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926-3
Thread Type7/8-14 UNF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.19 lb
Cross References
Aeroquip2066-6-10S
Parker0507-10-6
SAE Ref.SAE J514 6-10 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
