HGW HYDRAULICS

6900-10-08-O-SS

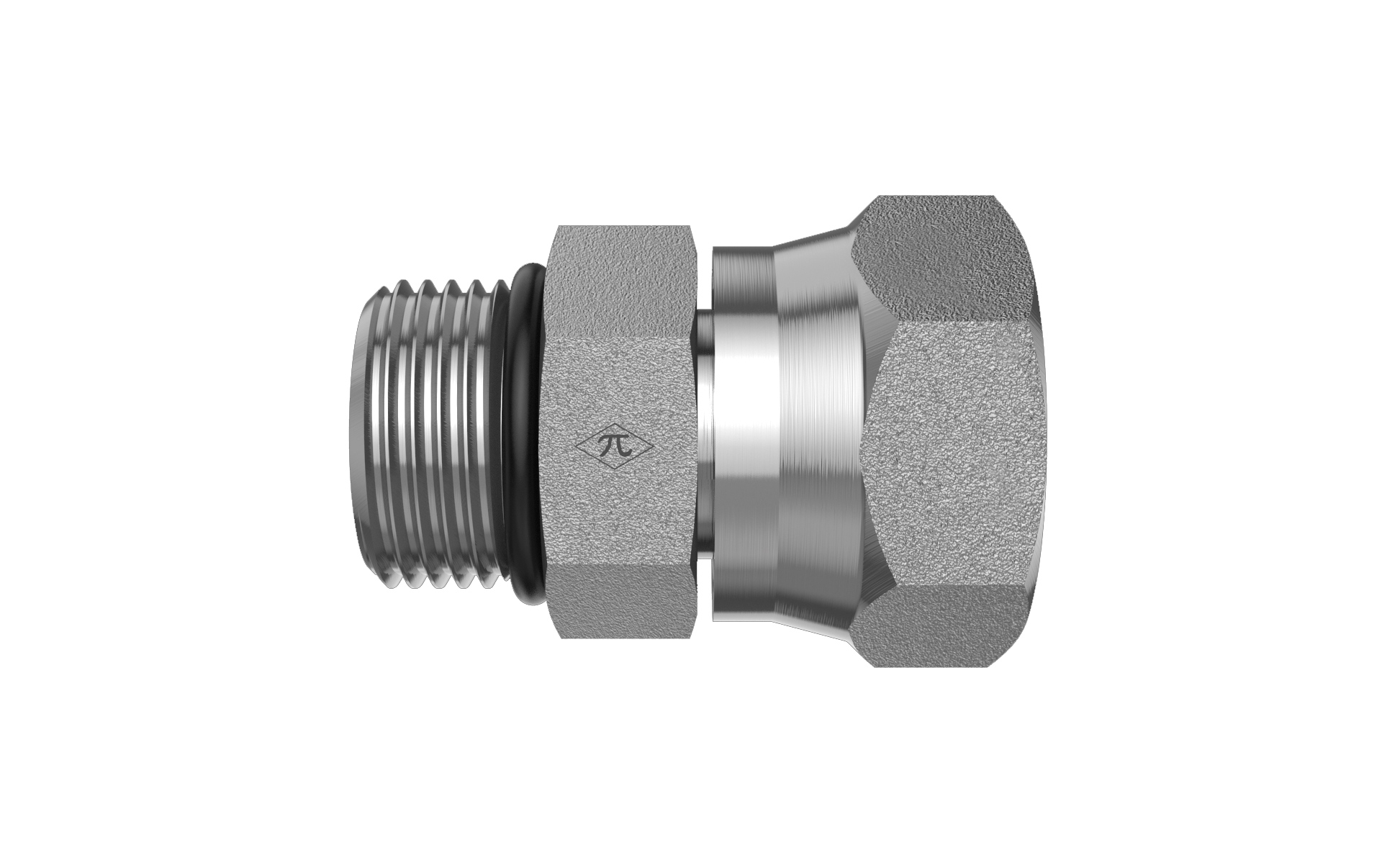

7/8-14 Male ORB x 1/2" Female NPSM Swivel

6900-10-08-O-SS is a 7/8-14 Male ORB x 1/2" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Stainless Steel
  • Swivel Connector
  • None
$368.00
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926-3
Thread Type7/8-14 UNF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.23 lb
PlatingNone
Cross References
Aeroquip259-2066-8-10
Parker0507-10-8-SS
SAE Ref.SAE J514 8-10 140157SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
