HGW HYDRAULICS

6900-10-12-O-VITON

7/8-14 Male ORB × 3/4" Female NPSM Swivel · Swivel Connector

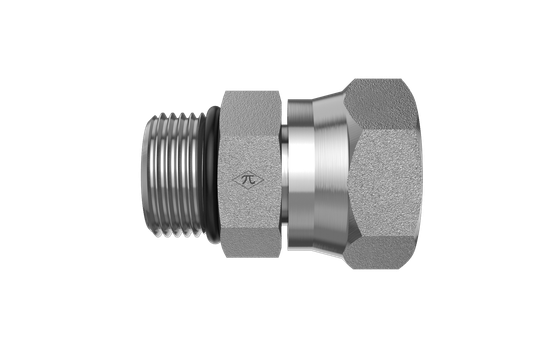

The HGW 6900-10-12-O-VITON is a swivel connector joining 7/8-14 male ORB to 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$16.26
(0) Write a Review
SKU:
6900-10-12-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926-3
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.34 lb
Cross References
Parker0507-10-12 FKM
SAE Ref.SAE J514 12-10 140157CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
