HGW HYDRAULICS

6900-12-12-O-SS

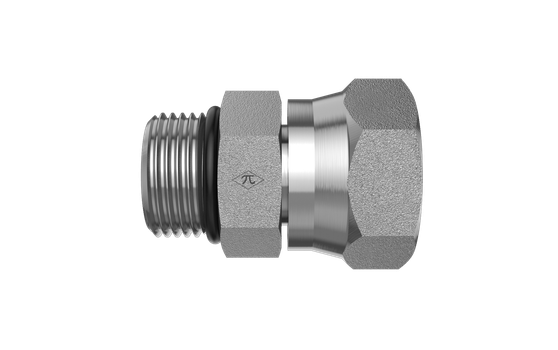

1-1/16-12 Male ORB x 3/4" Female NPSM Swivel

6900-12-12-O-SS is a 1-1/16-12 Male ORB x 3/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Stainless Steel
  • Swivel Connector
  • None
$326.53
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926-3
Thread Type1-1/16-12 UN
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight0.38 lb
PlatingNone
Cross References
Aeroquip259-2066-12-12
Parker0507-12-12-SS
SAE Ref.SAE J514 12-12 140157SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
