HGW HYDRAULICS

6900-12-16-O

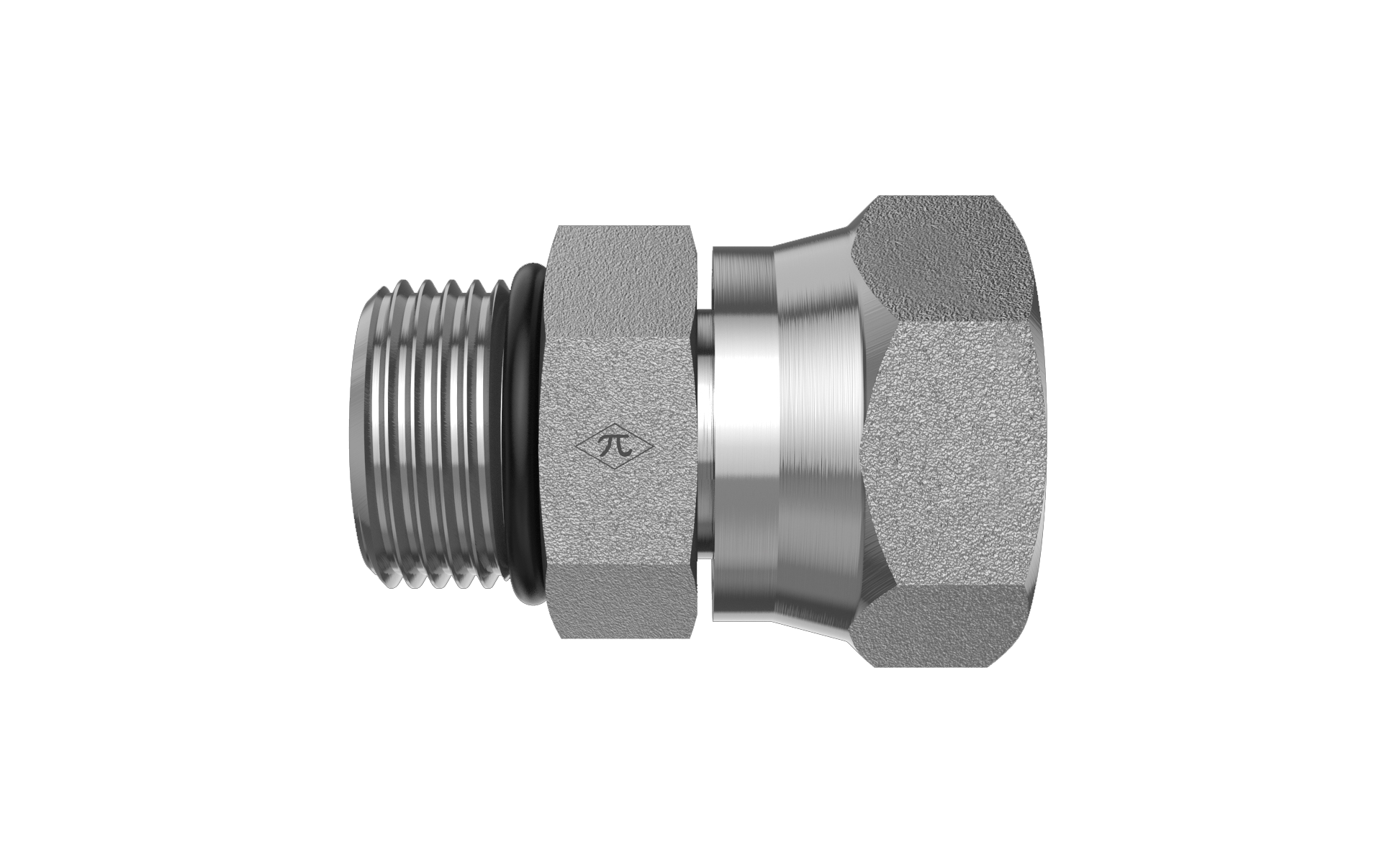

1-1/16-12 Male ORB x 1" Female NPSM Swivel

6900-12-16-O is a 1-1/16-12 Male ORB x 1" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$16.59
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926-3
Thread Type1-1/16-12 UN
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.52 lb
Cross References
Aeroquip2066-16-12S
Parker0507-12-16
SAE Ref.SAE J514 16-12 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
