HGW HYDRAULICS

6900-16-08-O

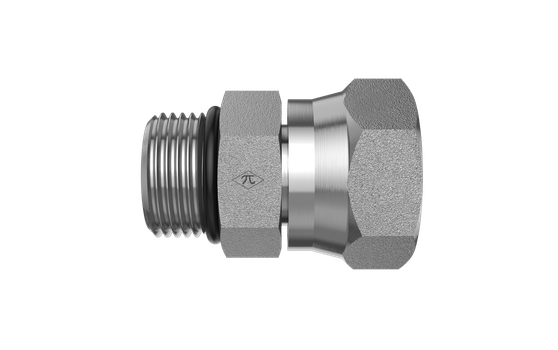

1-5/16-12 Male ORB × 1/2" Female NPSM Swivel · Swivel Connector

The HGW 6900-16-08-O is a swivel connector joining 1-5/16-12 male ORB to 1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$11.62
(0) Write a Review
SKU:
6900-16-08-O

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926-3
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.46 lb
Cross References
Aeroquip2066-8-16S
Parker0507-16-8
SAE Ref.SAE J514 8-16 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
