HGW HYDRAULICS

6900-20-12-O

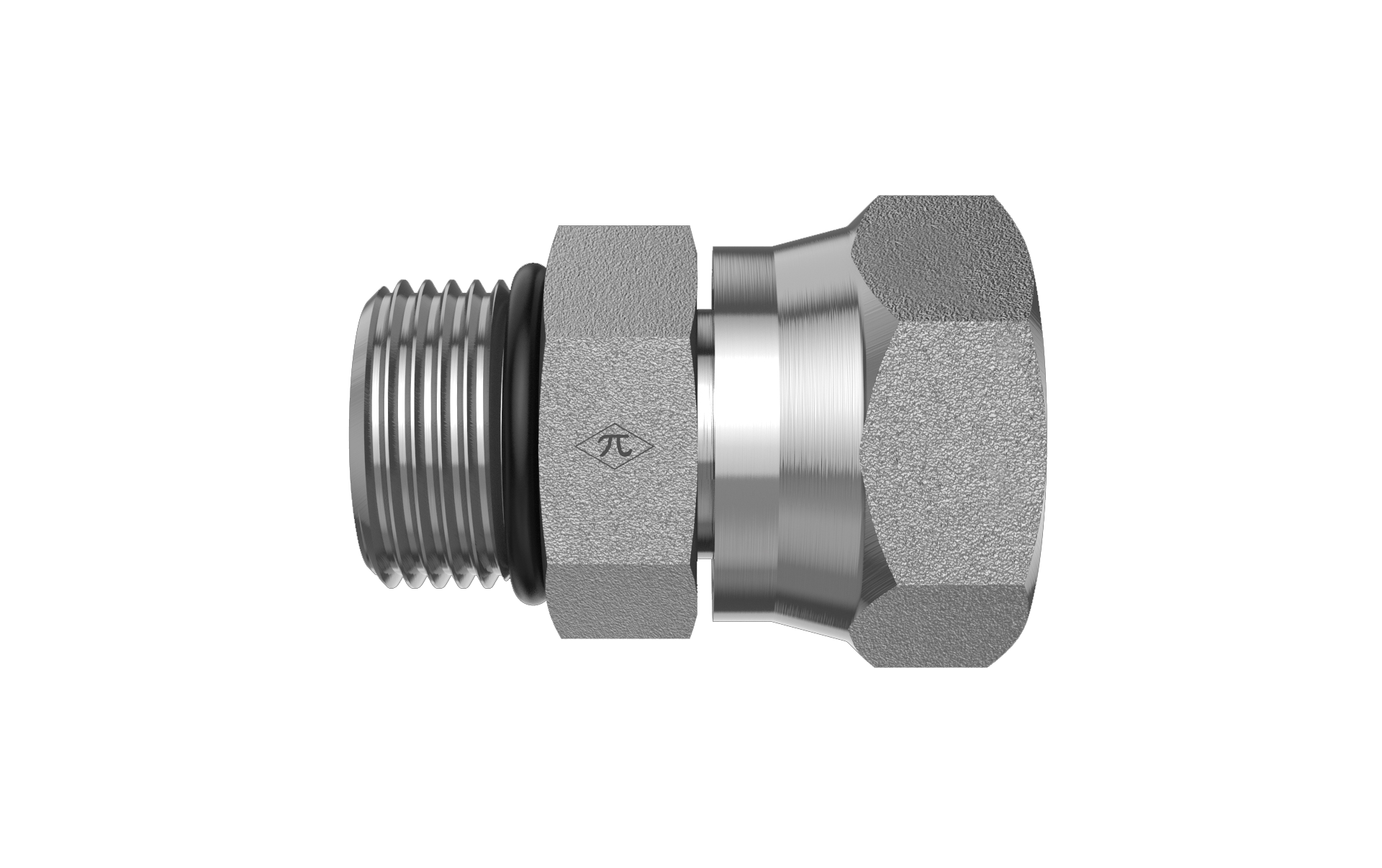

1-5/8-12 Male ORB x 3/4" Female NPSM Swivel

6900-20-12-O is a 1-5/8-12 Male ORB x 3/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$39.67
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-5/8-12
StandardSAE J1926-3
Thread Type1-5/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J476
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.73 lb
Cross References
Aeroquip2066-12-20S
Parker0507-20-12
SAE Ref.SAE J514 12-20 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
