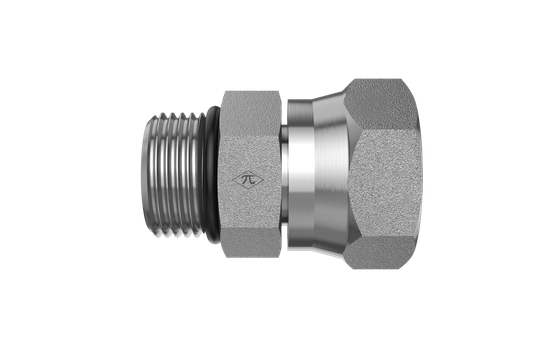

Google Merchant product image

HGW HYDRAULICS

6900-24-20-O

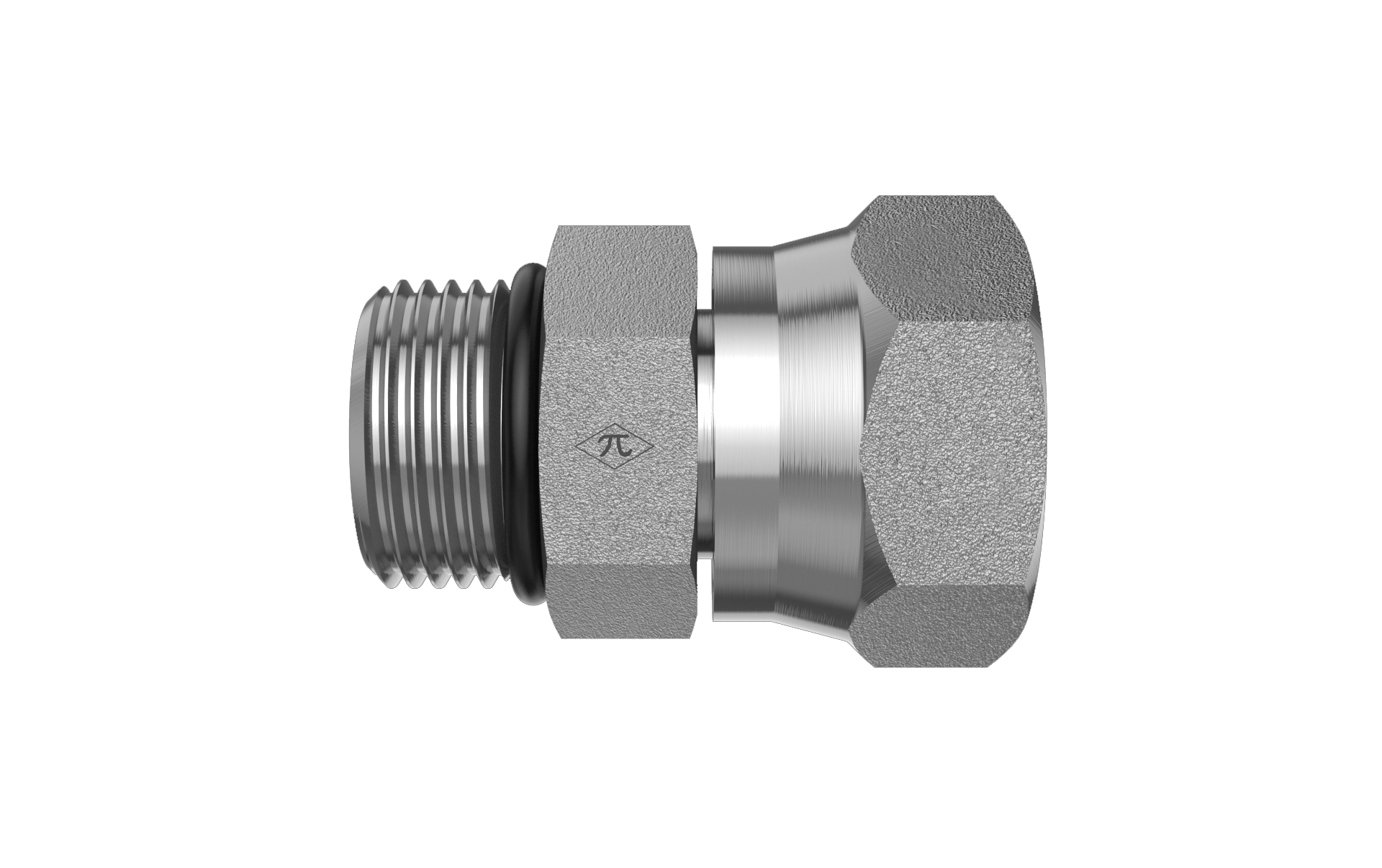

1-7/8-12 Male ORB x 1-1/4" Female NPSM Swivel

6900-24-20-O is a 1-7/8-12 Male ORB x 1-1/4" Female NPSM Swivel in the 6900-O Series. 6900-O connects an SAE O-ring boss port to an NPSM straight-thread swivel end for alignment in a straight adapter.

  • Steel
  • Trivalent Zinc
  • Swivel Connector
$23.44
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Connector
Weight0.98 lb
Cross References
Aeroquip2066-20-24S
Parker0507-24-20
SAE Ref.SAE J514 20-24 140157CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
