HGW HYDRAULICS

6900-24-24-O-SS

1-7/8-12 Male ORB × 1-1/2" Female NPSM Swivel · Swivel Connector

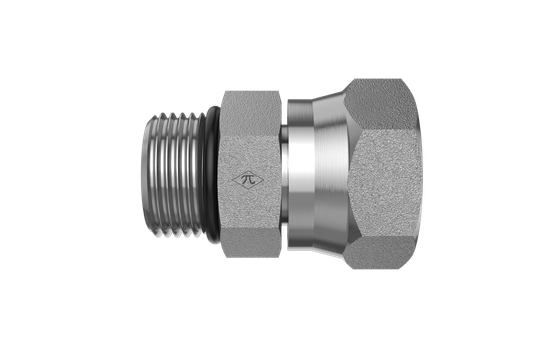

The HGW 6900-24-24-O-SS is a swivel connector joining 1-7/8-12 male ORB to 1-1/2" female NPSM swivel. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Swivel Connector
$584.15
(0) Write a Review
SKU:
6900-24-24-O-SS

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Connector
Weight1.28 lb
Cross References
Aeroquip259-2066-24-24
Parker0507-24-24-SS
SAE Ref.SAE J514 24-24 140157SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
