6901-06-06-NWO-FG

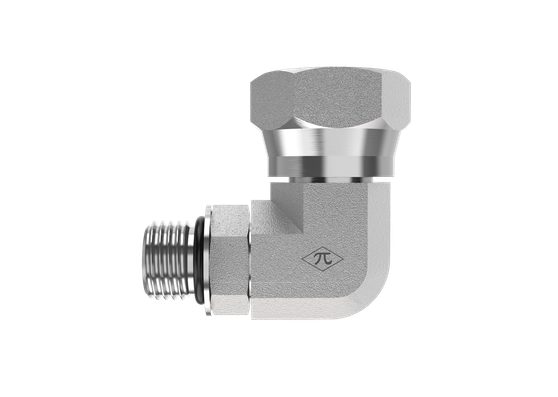

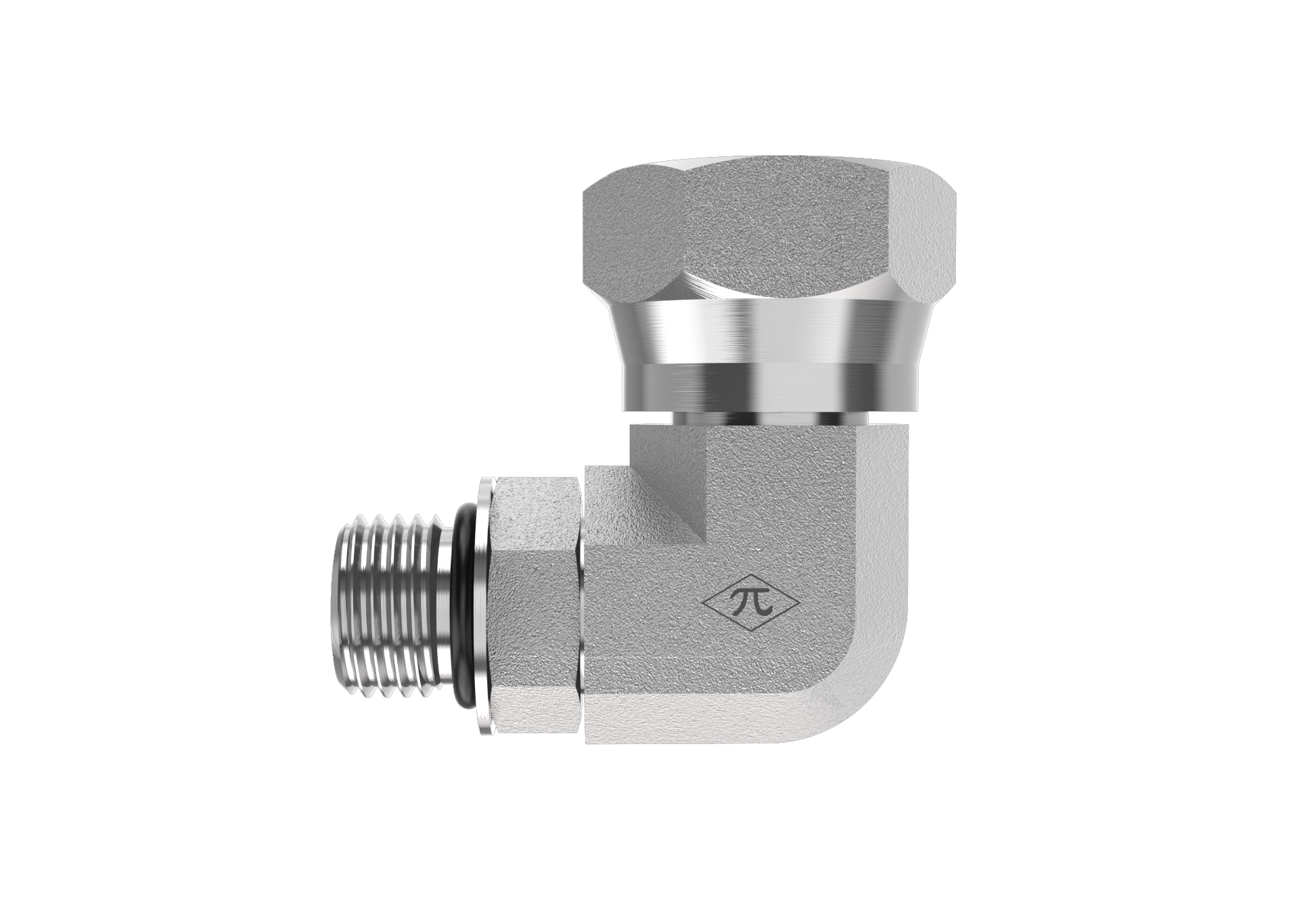

9/16-18 Male Adjustable ORB × 3/8" Female NPSM Swivel · Adjustable Swivel Elbow

The HGW 6901-06-06-NWO-FG is an adjustable swivel elbow joining 9/16-18 male adjustable ORB to 3/8" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$6.43
(0) Write a Review
SKU:
6901-06-06-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926-3
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.16 lb
Cross References
Aeroquip2068-6-6S
Parker2507-6-6
SAE Ref.SAE J514 6-6 140257CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
