HGW HYDRAULICS

6901-20-20-NWO-FG

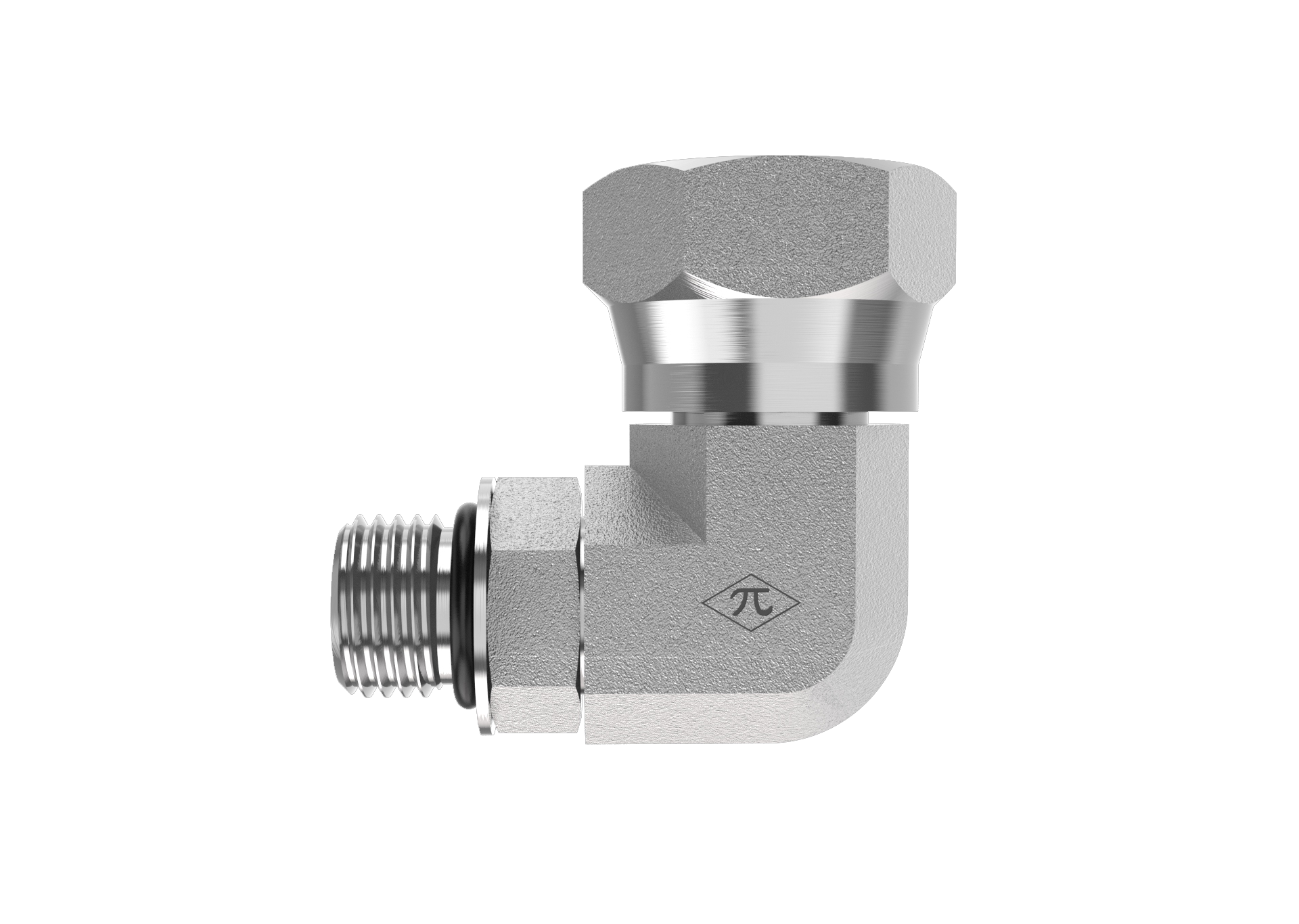

1-5/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel

6901-20-20-NWO-FG is a 1-5/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel in the 6901-NWO-FG Series. 6901-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 90-degree elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$39.44
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/8-12
StandardSAE J1926-3
Thread Type1-5/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J476
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight1.73 lb
Cross References
Aeroquip2068-20-20S
Parker2507-20-20
SAE Ref.SAE J514 20-20 140257CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
