HGW HYDRAULICS

6901-24-20-NWO-FG

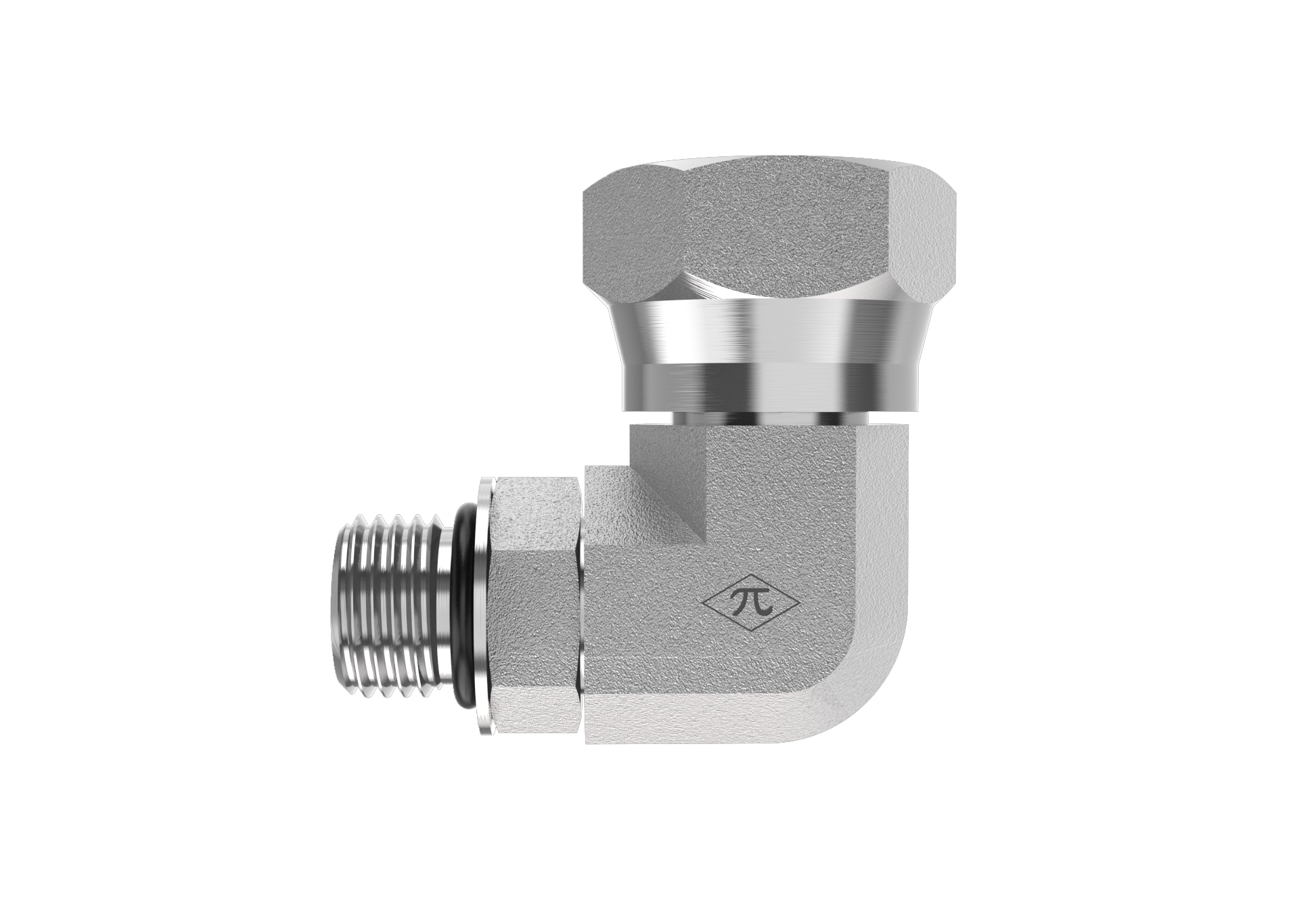

1-7/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel

6901-24-20-NWO-FG is a 1-7/8-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel in the 6901-NWO-FG Series. 6901-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 90-degree elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$60.38
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight2.17 lb
Cross References
Aeroquip2068-20-24S
Parker2507-24-20
SAE Ref.SAE J514 20-24 140257CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
