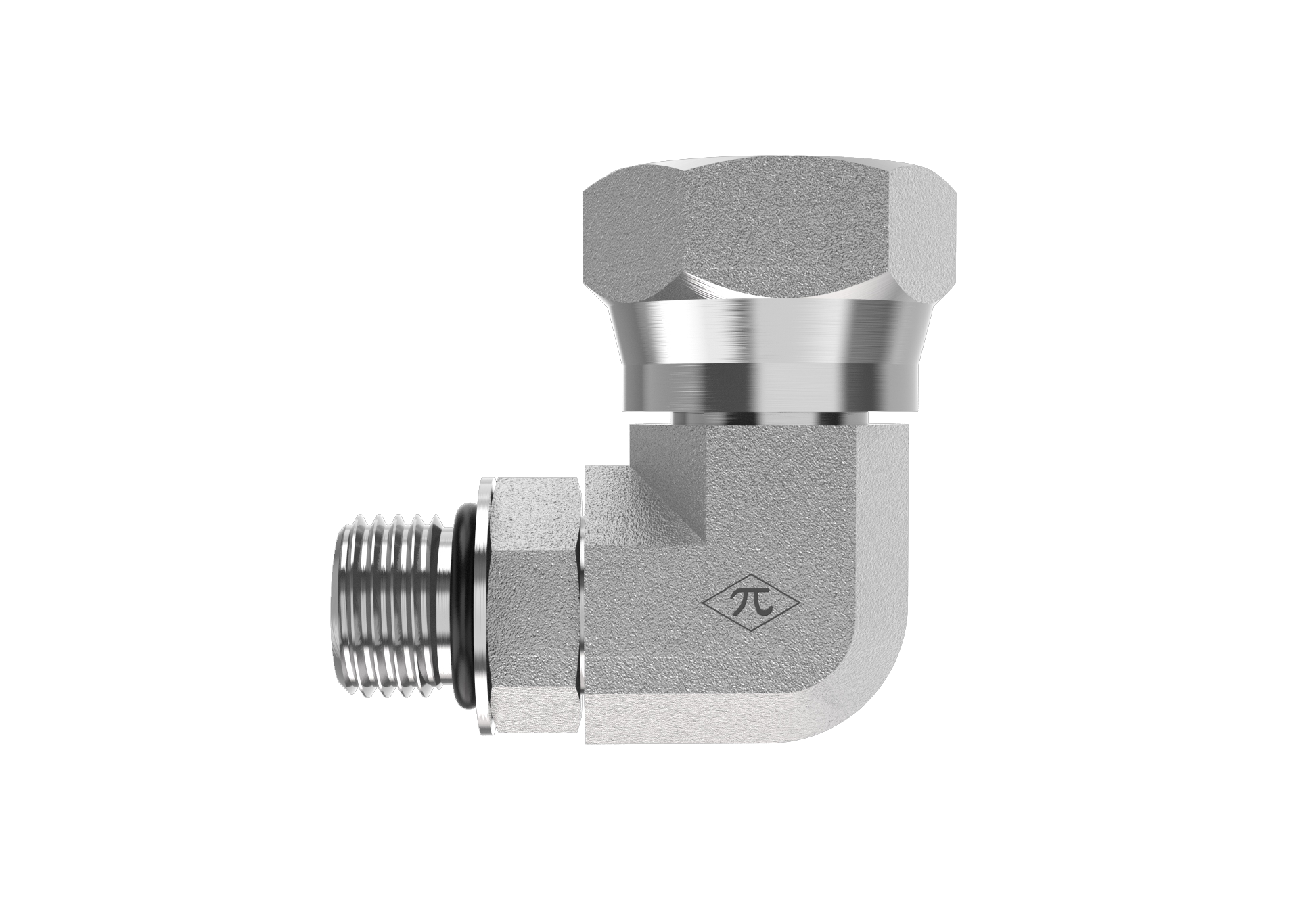

Google Merchant product image

HGW HYDRAULICS

6901-24-24-NWO-FG

1-7/8-12 Male Adjustable ORB × 1-1/2" Female NPSM Swivel · Adjustable Swivel Elbow

The HGW 6901-24-24-NWO-FG is an adjustable swivel elbow joining 1-7/8-12 male adjustable ORB to 1-1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$85.05
(0) Write a Review
SKU:
6901-24-24-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight2.16 lb
Cross References
Aeroquip2068-24-24S
Parker2507-24-24
SAE Ref.SAE J514 24-24 140257CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
