HGW HYDRAULICS

6901-24-24-NWO-SS

1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPSM Swivel

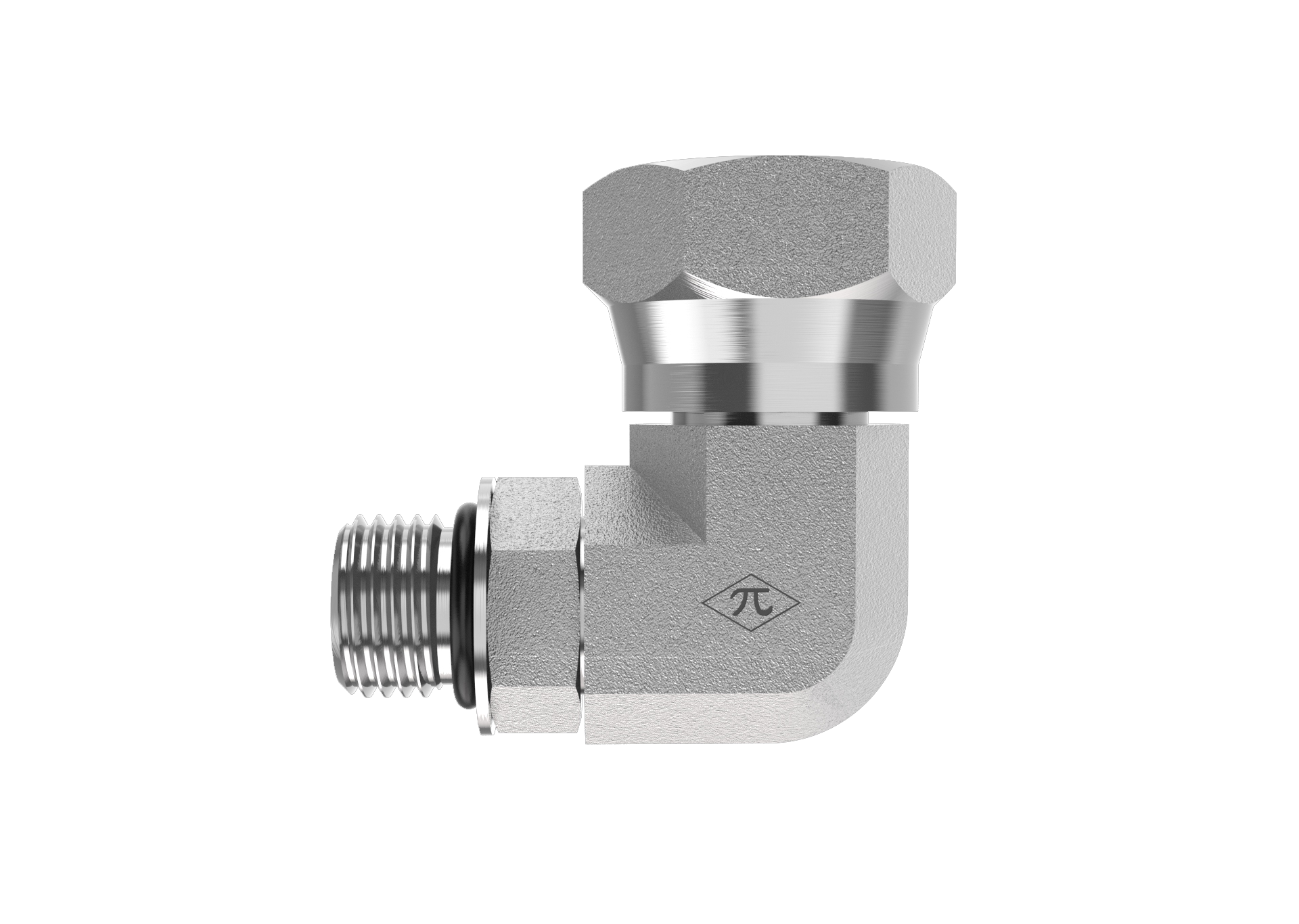

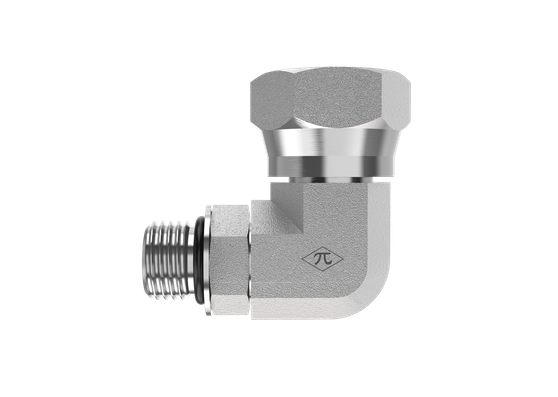

6901-24-24-NWO-SS is a 1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPSM Swivel in the 6901-NWO-FG Series. 6901-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 90-degree elbow.

  • Stainless Steel
  • Adjustable Swivel Elbow
  • None
$1,017.08
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Swivel Elbow
Weight4.80 lb
PlatingNone
Cross References
Aeroquip259-2068-24-24
Parker2507-24-24-SS
SAE Ref.SAE J514 24-24 140257SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
