HGW HYDRAULICS

6901-32-32-NWO-FG

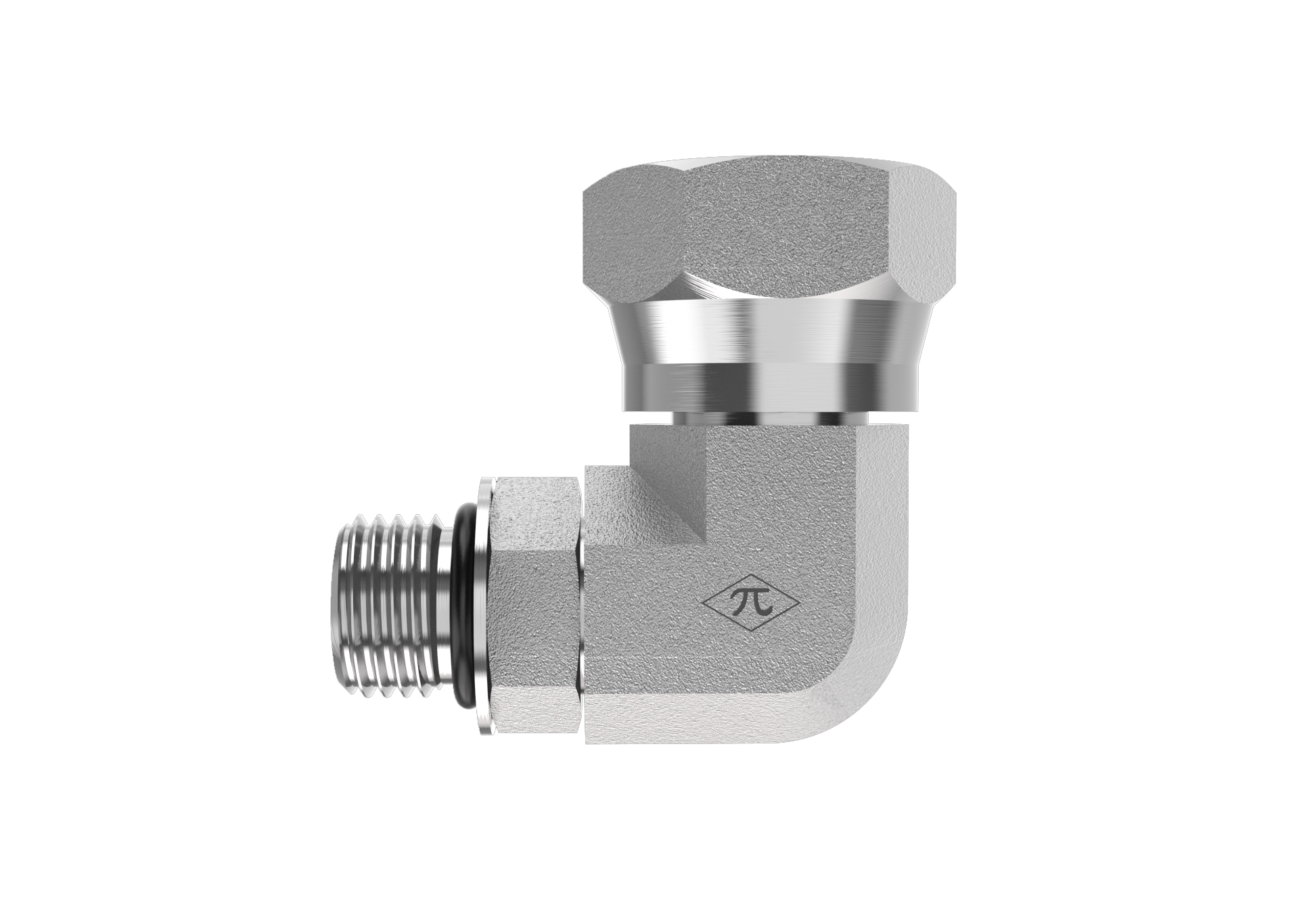

2-1/2-12 Male Adjustable ORB × 2" Female NPSM Swivel · Adjustable Swivel Elbow

The HGW 6901-32-32-NWO-FG is an adjustable swivel elbow joining 2-1/2-12 male adjustable ORB to 2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$343.66
(0) Write a Review
SKU:
6901-32-32-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size2-1/2-12
StandardSAE J1926-3
Thread Type2-1/2-12 UN
Size2-1/2-12
Connection B
TypeFemale NPSM Swivel
Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight4.40 lb
Cross References
Aeroquip2068-32-32S
Parker2507-32-32
SAE Ref.SAE J514 32-32 140257CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
