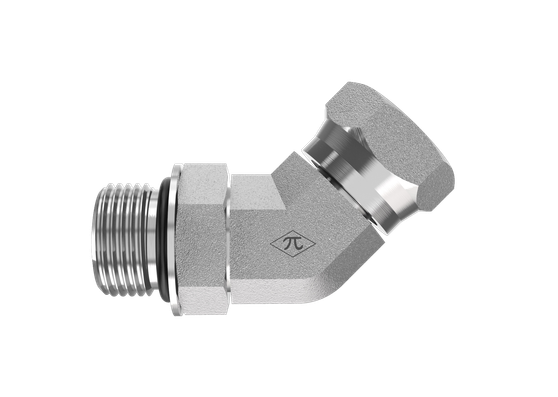

Google Merchant product image

HGW HYDRAULICS

6902-04-04-NWO-SS

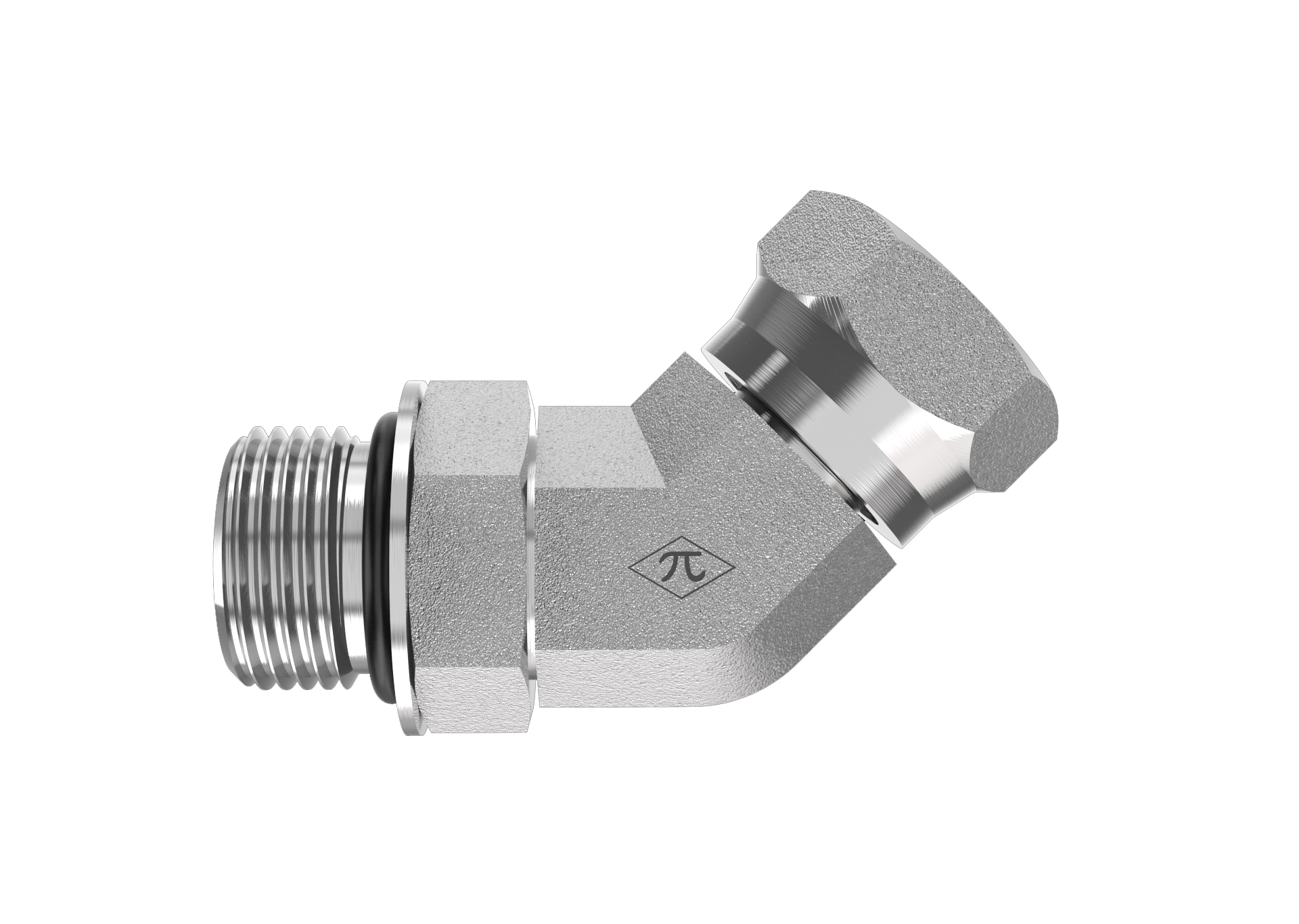

7/16-20 Male Adjustable ORB x 1/4" Female NPSM Swivel

6902-04-04-NWO-SS is a 7/16-20 Male Adjustable ORB x 1/4" Female NPSM Swivel in the 6902-NWO-FG Series. 6902-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 45-degree elbow.

  • Stainless Steel
  • Adjustable Swivel Elbow
  • None
$134.02
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size7/16-20
StandardSAE J1926-3
Thread Type7/16-20 UNF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Swivel Elbow
Weight0.10 lb
PlatingNone
Cross References
Aeroquip259-2067-4-4
Parker3507-4-4-SS
SAE Ref.SAE J514 4-4 140357SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
