HGW HYDRAULICS

6902-06-08-NWO-FG

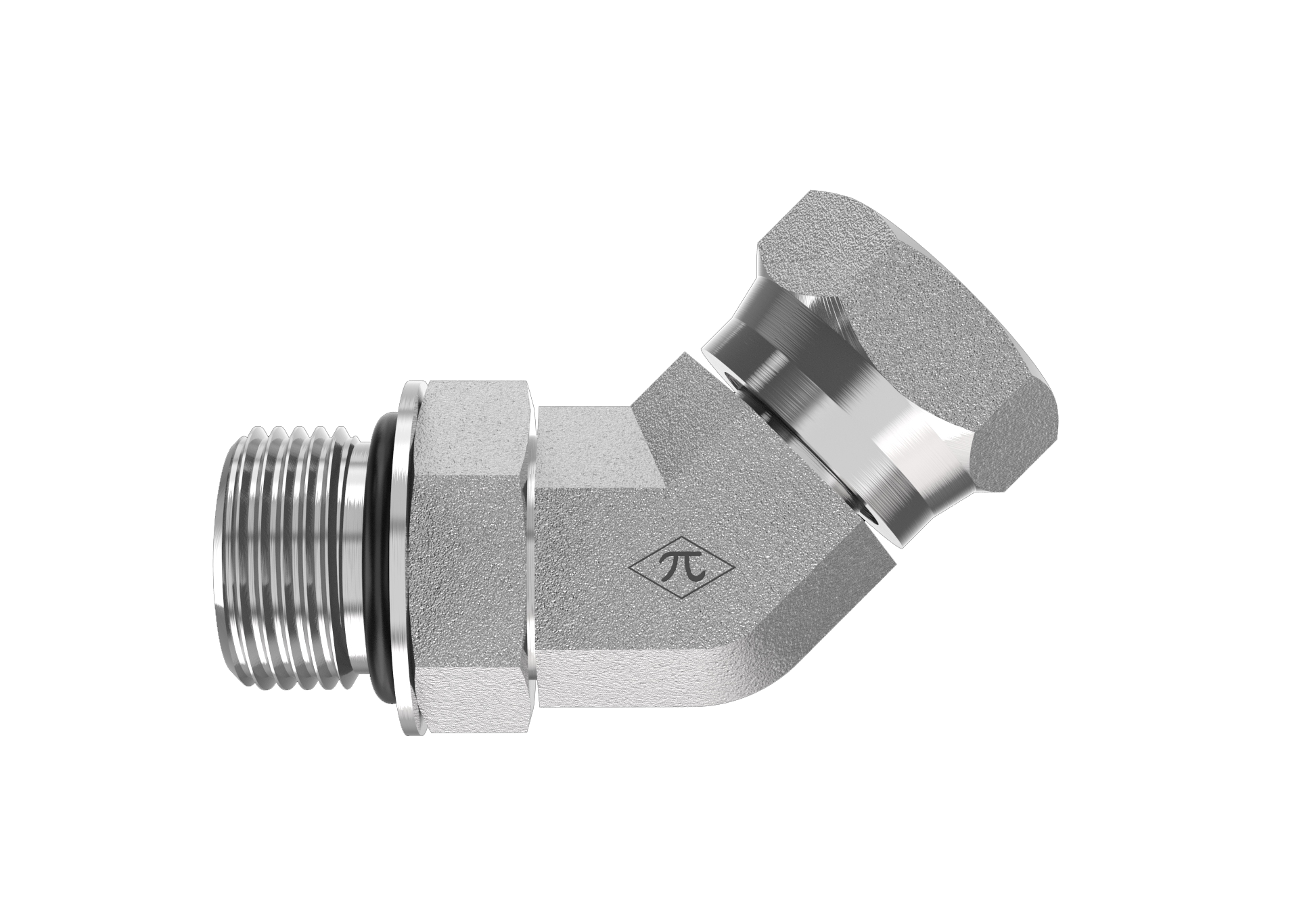

9/16-18 Male Adjustable ORB × 1/2" Female NPSM Swivel · Adjustable Swivel Elbow

The HGW 6902-06-08-NWO-FG is an adjustable swivel elbow joining 9/16-18 male adjustable ORB to 1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$10.53
(0) Write a Review
SKU:
6902-06-08-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size9/16-18
StandardSAE J1926-3
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.21 lb
Cross References
Aeroquip2067-8-6S
Parker3507-6-8
SAE Ref.SAE J514 8-6 140357CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
