HGW HYDRAULICS

6902-08-08-NWO-FG

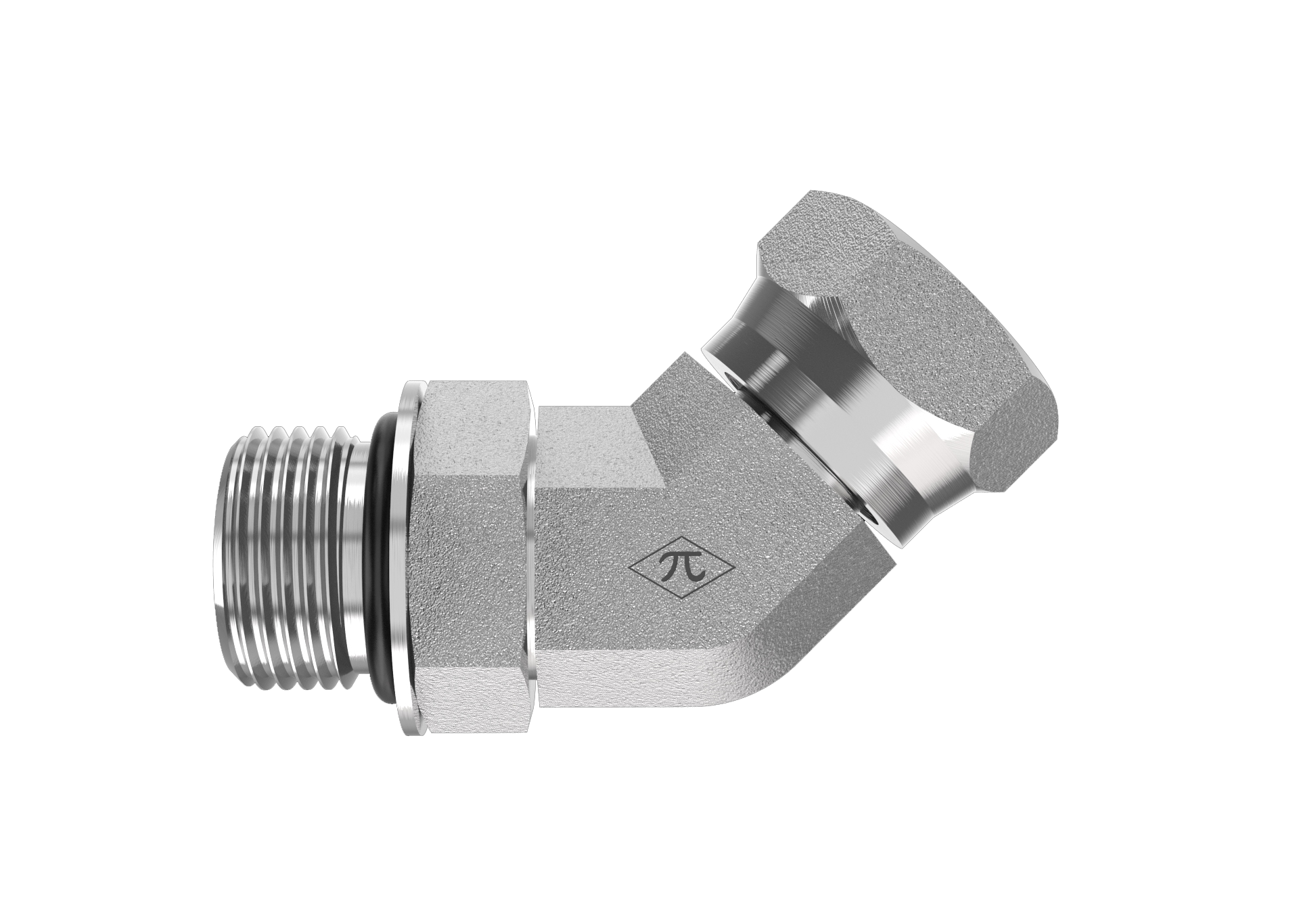

3/4-16 Male Adjustable ORB x 1/2" Female NPSM Swivel

6902-08-08-NWO-FG is a 3/4-16 Male Adjustable ORB x 1/2" Female NPSM Swivel in the 6902-NWO-FG Series. 6902-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 45-degree elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$8.13
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926-3
Thread Type3/4-16 UNF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.26 lb
Cross References
Aeroquip2067-8-8S
Parker3507-8-8
SAE Ref.SAE J514 8-8 140357CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
