HGW HYDRAULICS

6902-12-08-NWO-FG

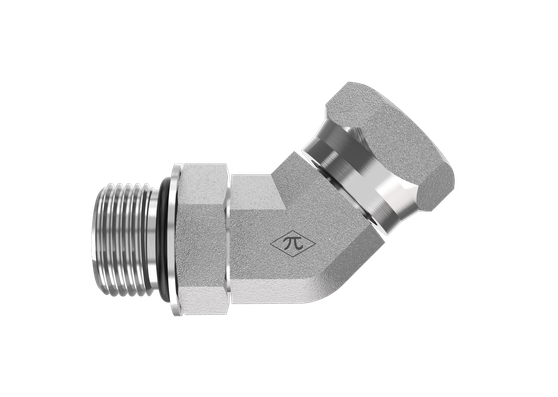

1-1/16-12 Male Adjustable ORB × 1/2" Female NPSM Swivel · Adjustable Swivel Elbow

The HGW 6902-12-08-NWO-FG is an adjustable swivel elbow joining 1-1/16-12 male adjustable ORB to 1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$11.77
(0) Write a Review
SKU:
6902-12-08-NWO-FG

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926-3
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.53 lb
Cross References
Aeroquip2067-8-12S
Parker3507-12-8
SAE Ref.SAE J514 8-12 140357CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
