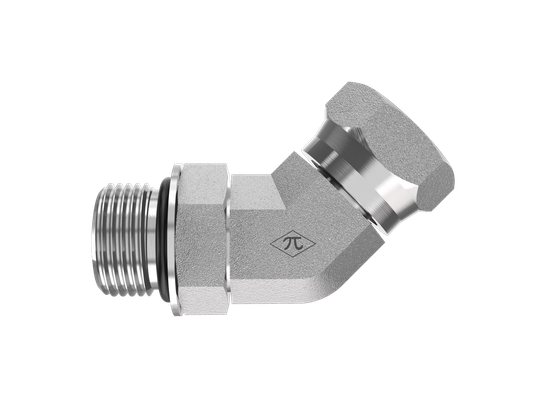

Google Merchant product image

HGW HYDRAULICS

6902-16-20-NWO-FG

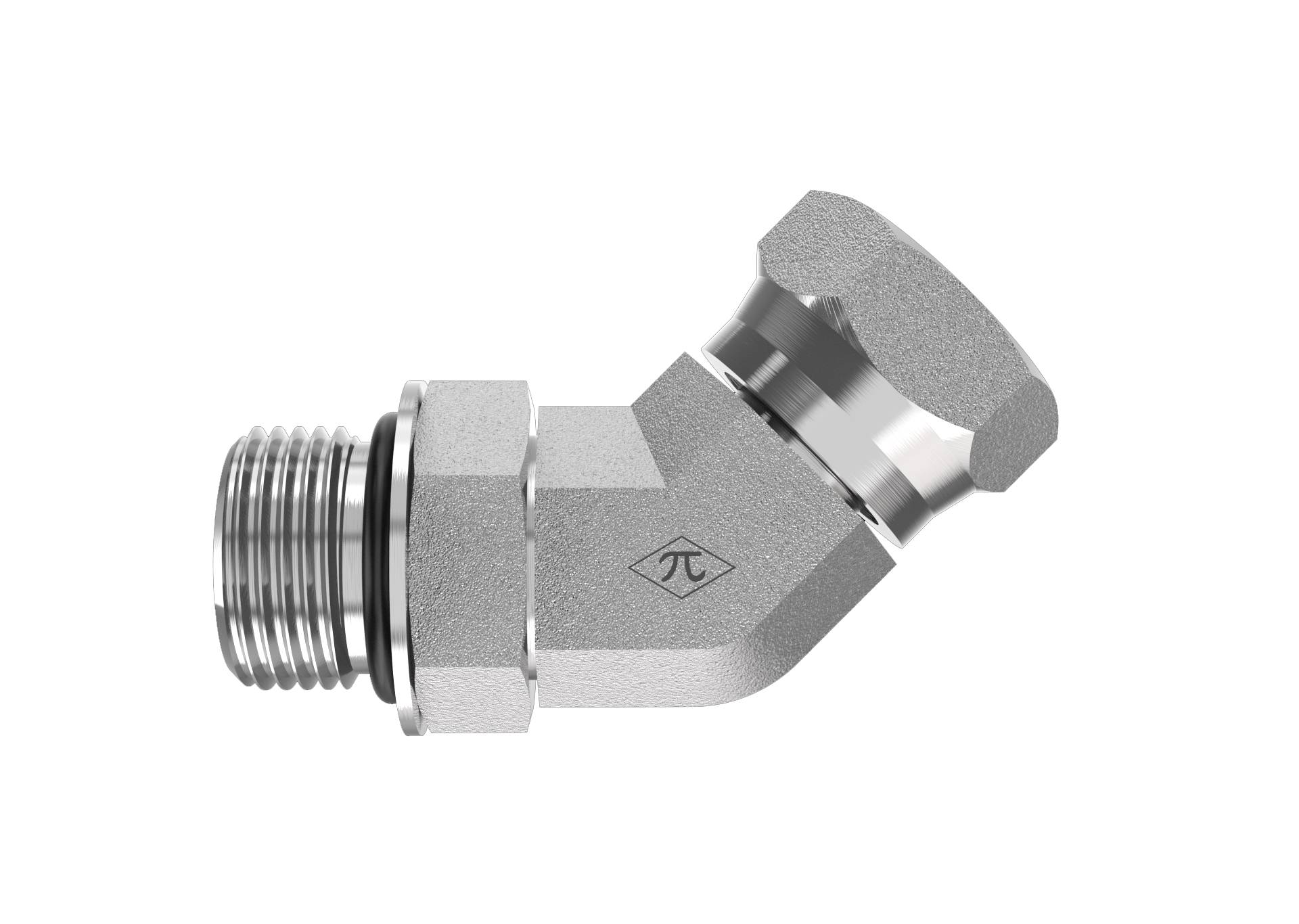

1-5/16-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel

6902-16-20-NWO-FG is a 1-5/16-12 Male Adjustable ORB x 1-1/4" Female NPSM Swivel in the 6902-NWO-FG Series. 6902-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 45-degree elbow.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$112.11
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926-3
Thread Type1-5/16-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight1.24 lb
Cross References
Aeroquip2067-20-16S
Parker3507-16-20
SAE Ref.SAE J514 20-16 140357CN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
