HGW HYDRAULICS

6902-24-24-NWO-SS

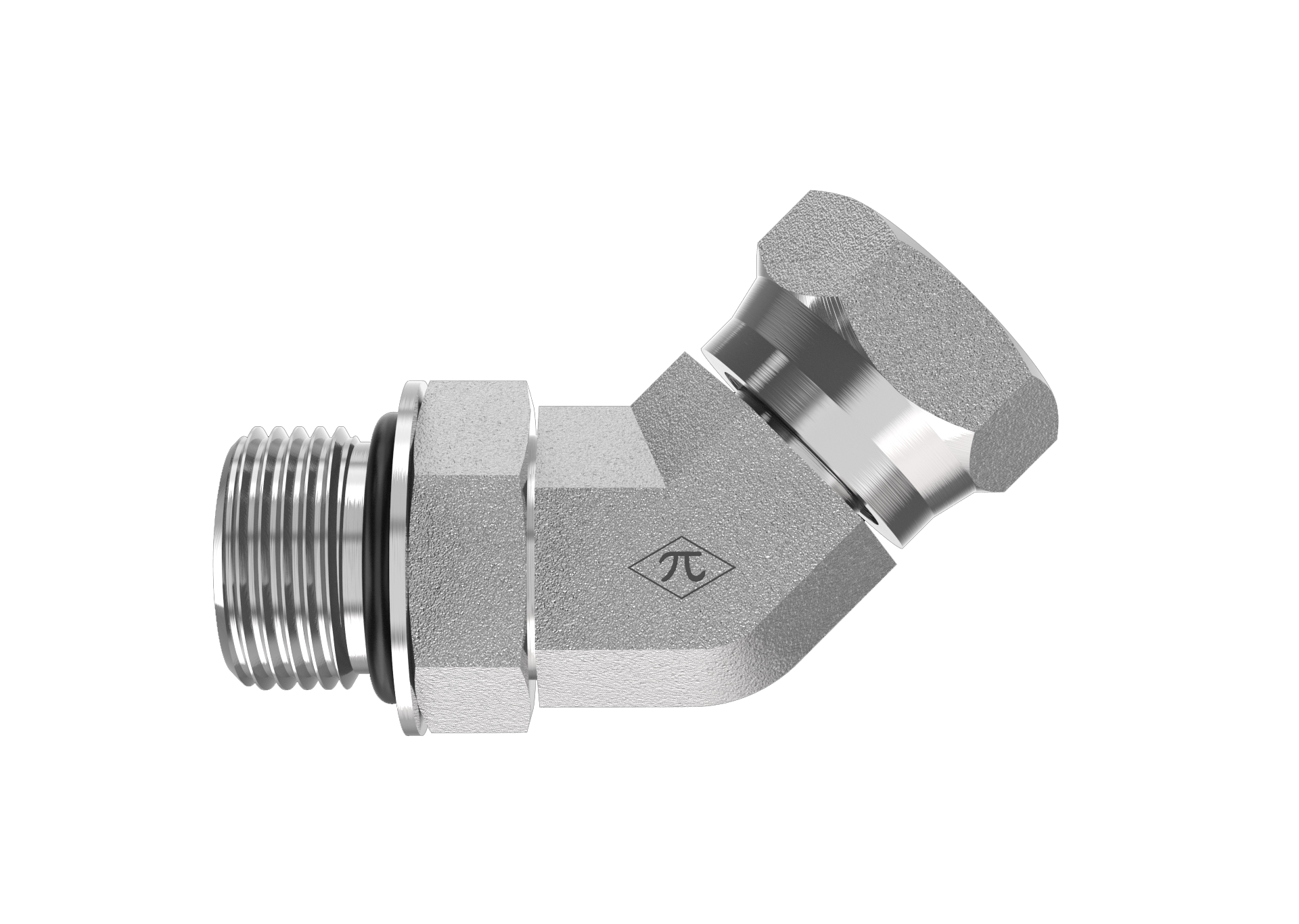

1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPSM Swivel

6902-24-24-NWO-SS is a 1-7/8-12 Male Adjustable ORB x 1-1/2" Female NPSM Swivel in the 6902-NWO-FG Series. 6902-NWO-FG connects an SAE O-ring boss adjustable port to an NPSM straight-thread swivel in a 45-degree elbow.

  • Stainless Steel
  • Adjustable Swivel Elbow
  • None
$1,180.27
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926-3
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdjustable Swivel Elbow
Weight1.75 lb
PlatingNone
Cross References
Aeroquip259-2067-24-24
Parker3507-24-24-SS
SAE Ref.SAE J514 24-24 140357SN

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
