HGW HYDRAULICS

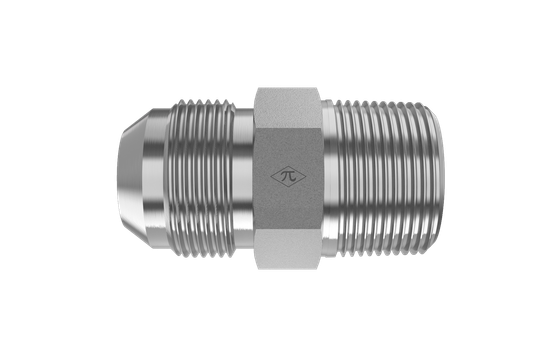

7000-04-06

1/4" Male JIC x 3/8" Male BSPT

7000-04-06 is a 1/4" Male JIC x 3/8" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Steel
  • Trivalent Zinc
  • Connector
$4.34
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale BSPT
Pipe Size3/8"
StandardISO 7/1 (BSPT)
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.07 lb
Cross References
AeroquipGG110-NP04-06
Parker4-6F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
