HGW HYDRAULICS

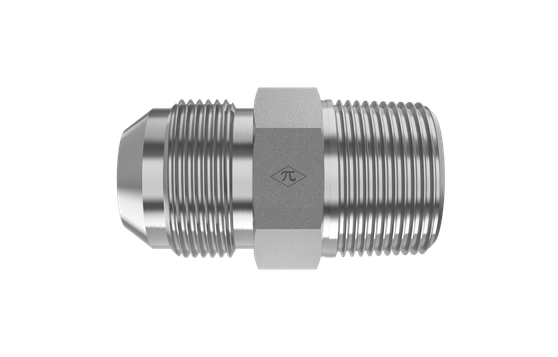

7000-05-06

5/16" Male JIC x 3/8" Male BSPT

7000-05-06 is a 5/16" Male JIC x 3/8" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Steel
  • Trivalent Zinc
  • Connector
$16.50
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale BSPT
Pipe Size3/8"
StandardISO 7/1 (BSPT)
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.09 lb
Cross References
AeroquipGG110-NP05-06
Parker5-6F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
