HGW HYDRAULICS

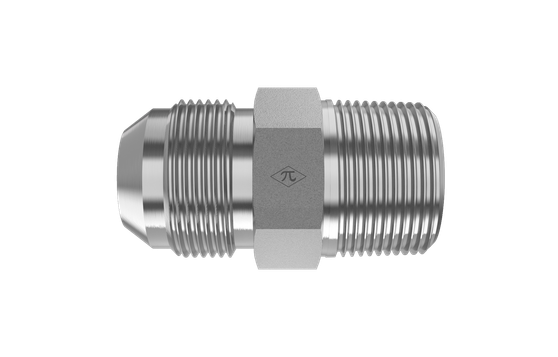

7000-06-02

3/8" Male JIC x 1/8" Male BSPT

7000-06-02 is a 3/8" Male JIC x 1/8" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Steel
  • Trivalent Zinc
  • Connector
$5.77
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale BSPT
Pipe Size1/8"
StandardISO 7/1 (BSPT)
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.06 lb
Cross References
AeroquipGG110-NP06-02
Parker6-2F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
