HGW HYDRAULICS

7000-06-06-SS

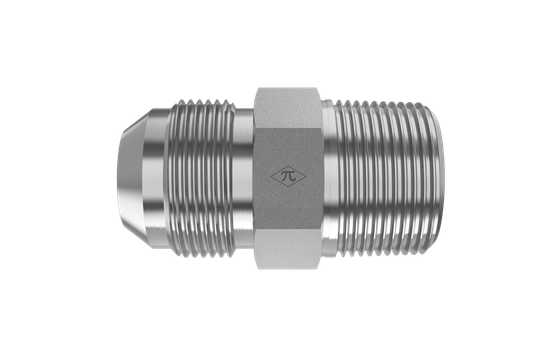

3/8" Male JIC 37° Flare × 3/8" Male BSPT · Straight Connector

The HGW 7000-06-06-SS is a straight connector joining 3/8" male JIC 37° flare to 3/8" male BSPT. Made from stainless steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Connector
$53.67
(0) Write a Review
SKU:
7000-06-06-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD3/8"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale BSPT
Pipe Size3/8"
StandardISO 7/1 (BSPT)
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeConnector
Weight0.08 lb
Cross References
Aeroquip259-GG110-NP06-06
Parker6-6F3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
