HGW HYDRAULICS

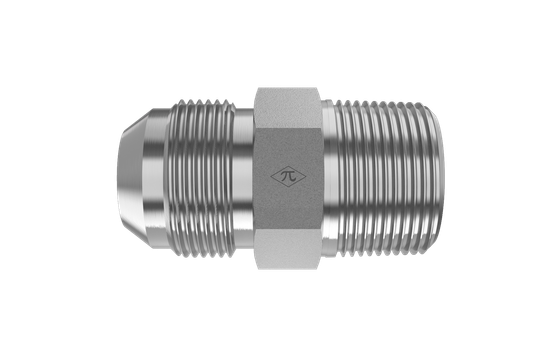

7000-08-04-SS

1/2" Male JIC x 1/4" Male BSPT

7000-08-04-SS is a 1/2" Male JIC x 1/4" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Stainless Steel
  • Passivated
  • Connector
$103.68
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale BSPT
Pipe Size1/4"
StandardISO 7/1 (BSPT)
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeConnector
Weight0.11 lb
Cross References
Aeroquip259-GG110-NP08-04
Parker8-4F3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
