HGW HYDRAULICS

7000-08-12

1/2" Male JIC x 3/4" Male BSPT

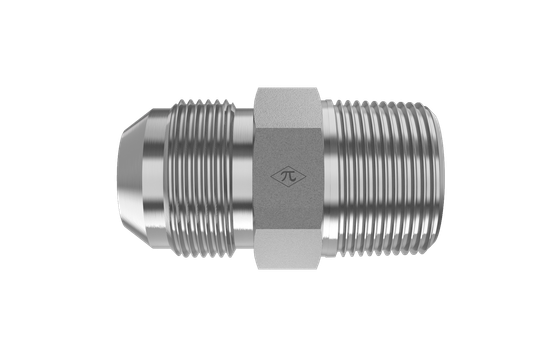

7000-08-12 is a 1/2" Male JIC x 3/4" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Steel
  • Trivalent Zinc
  • Connector
$8.86
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale BSPT
Pipe Size3/4"
StandardISO 7/1 (BSPT)
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.25 lb
Cross References
AeroquipGG110-NP08-12
Parker8-12F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
