HGW HYDRAULICS

7000-12-08-SS

3/4" Male JIC 37° Flare × 1/2" Male BSPT · Straight Connector

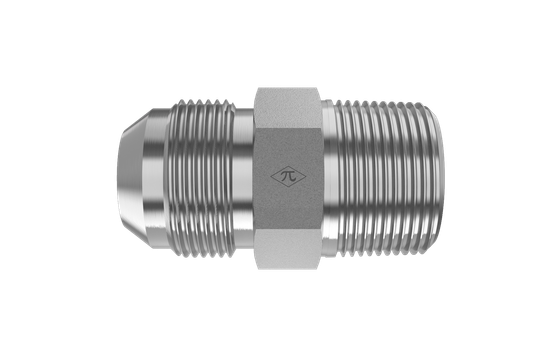

The HGW 7000-12-08-SS is a straight connector joining 3/4" male JIC 37° flare to 1/2" male BSPT. Made from stainless steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Connector
$168.11
(0) Write a Review
SKU:
7000-12-08-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD3/4"
StandardSAE J514 · Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale BSPT
Pipe Size1/2"
StandardISO 7/1 (BSPT)
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeConnector
Weight0.30 lb
Cross References
Aeroquip259-GG110-NP12-08
Parker12-8F3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
