HGW HYDRAULICS

7000-12-08

3/4" Male JIC x 1/2" Male BSPT

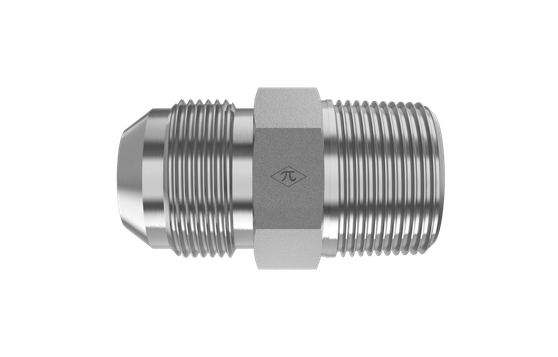

7000-12-08 is a 3/4" Male JIC x 1/2" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Steel
  • Trivalent Zinc
  • Connector
$7.73
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale BSPT
Pipe Size1/2"
StandardISO 7/1 (BSPT)
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.24 lb
Cross References
AeroquipGG110-NP12-08
Parker12-8F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
