HGW HYDRAULICS

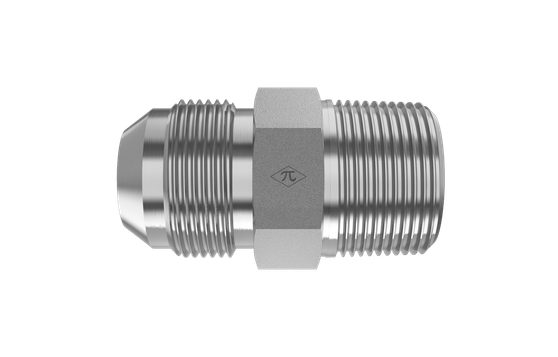

7000-12-20-SS

3/4" Male JIC x 1-1/4" Male BSPT

7000-12-20-SS is a 3/4" Male JIC x 1-1/4" Male BSPT in the 7000 Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe.

  • Stainless Steel
  • Passivated
  • Connector
$403.58
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale BSPT
Pipe Size1-1/4"
StandardISO 7/1 (BSPT)
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeConnector
Weight0.69 lb
Cross References
Aeroquip259-GG110-NP12-20
Parker12-20F3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
