7000-16-16

HGW HYDRAULICS

7000-16-16

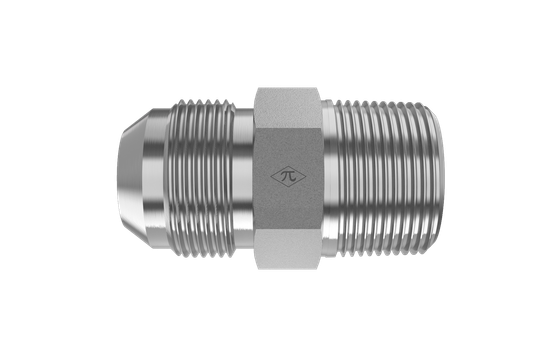

1" Male JIC 37° Flare × 1" Male BSPT · Straight Connector

The HGW 7000-16-16 is a straight connector joining 1" male JIC 37° flare to 1" male BSPT. Made from trivalent-zinc-plated steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Connector
$17.06
(0) Write a Review
SKU:
7000-16-16

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale BSPT
Pipe Size1"
StandardISO 7/1 (BSPT)
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.44 lb
Cross References
AeroquipGG110-NP16-16
Parker16F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
