7000-24-32

HGW HYDRAULICS

7000-24-32

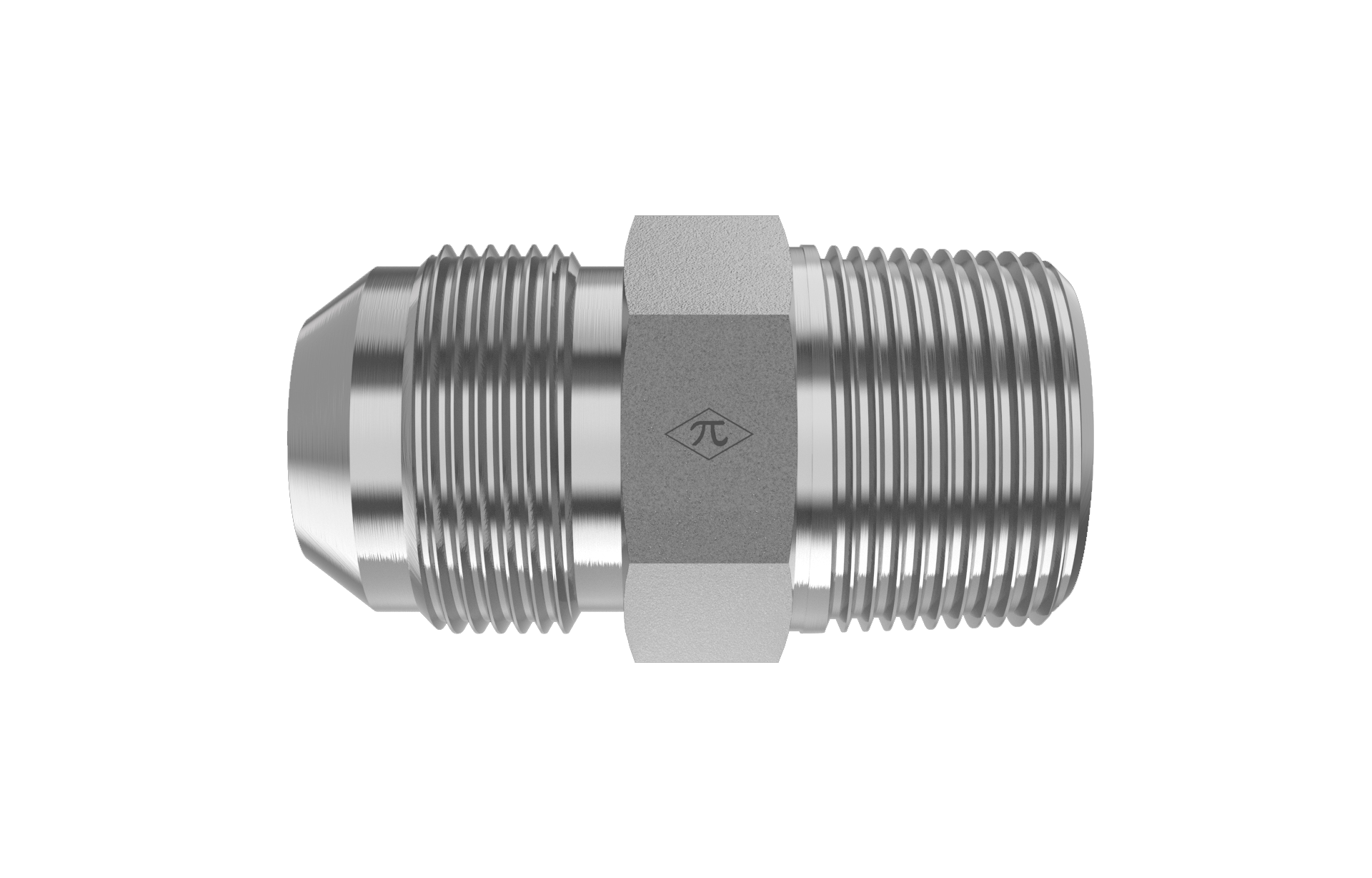

1-1/2" Male JIC 37° Flare × 2" Male BSPT · Straight Connector

The HGW 7000-24-32 is a straight connector joining 1-1/2" male JIC 37° flare to 2" male BSPT. Made from trivalent-zinc-plated steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Connector
$550.00
(0) Write a Review
SKU:
7000-24-32

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale BSPT
Pipe Size2"
StandardISO 7/1 (BSPT)
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight1.43 lb
Cross References
Parker24-32F3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
