HGW HYDRAULICS

7000-32-20-SS

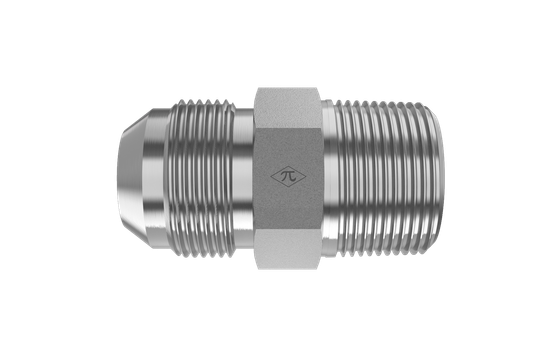

2" Male JIC 37° Flare × 1-1/4" Male BSPT · Straight Connector

The HGW 7000-32-20-SS is a straight connector joining 2" male JIC 37° flare to 1-1/4" male BSPT. Made from stainless steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Connector
$722.84
(0) Write a Review
SKU:
7000-32-20-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD2"
StandardSAE J514 · Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale BSPT
Pipe Size1-1/4"
StandardISO 7/1 (BSPT)
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeConnector
Weight1.25 lb
Cross References
Aeroquip259-GG110-NP32-20
Parker32-20F3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
