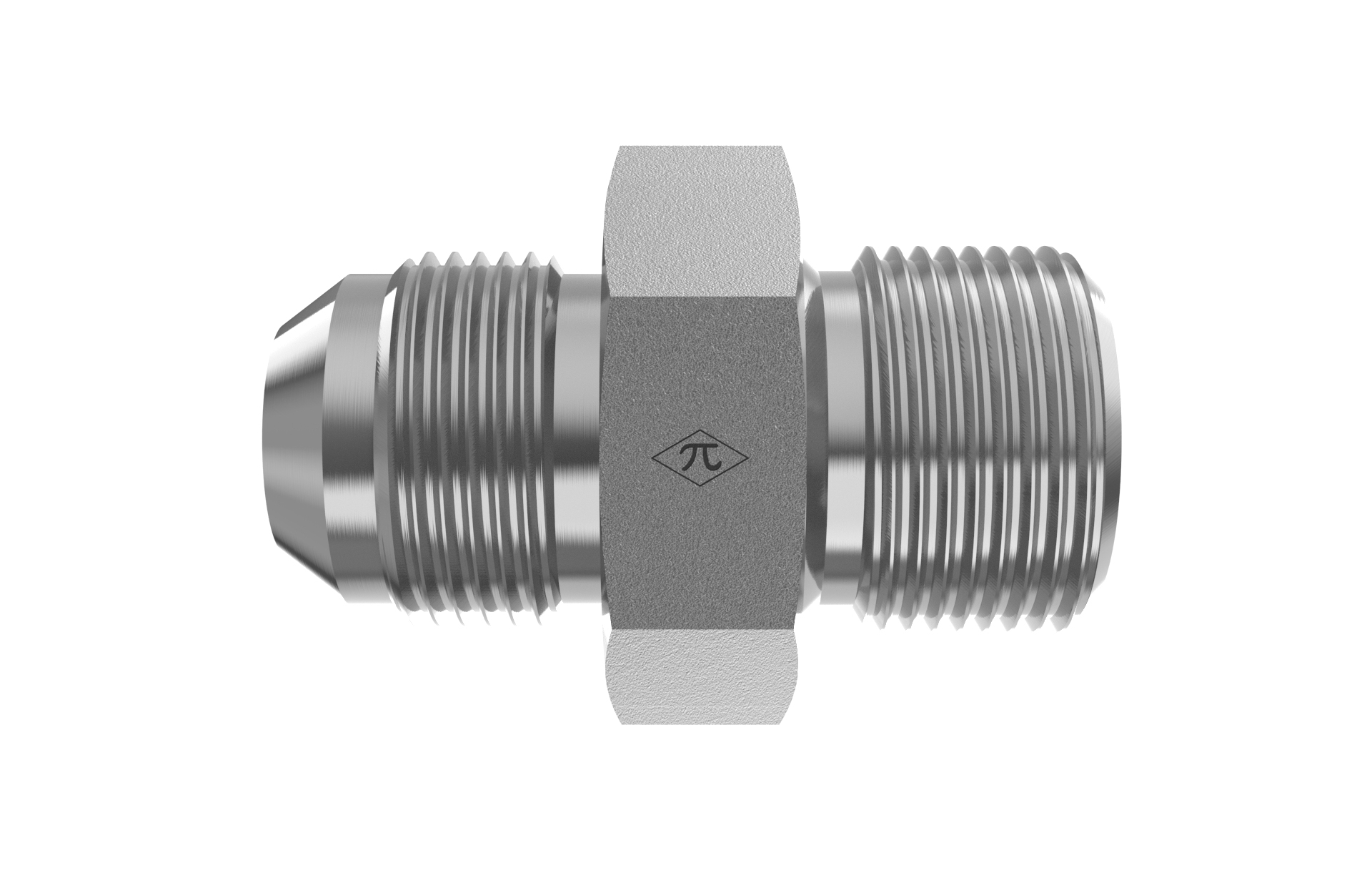

7002 product image

HGW HYDRAULICS

7002-05-06-SS

5/16" Male JIC x 3/8" Male BSPP

7002-05-06-SS is a 5/16" Male JIC x 3/8" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.

  • Stainless Steel
  • Passivated
  • Adapter
$54.38
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale BSPP
Pipe Size3/8"
StandardBS 5200 / ISO 228
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeAdapter
Weight0.10 lb
Cross References
Aeroquip259-2063-6-5
Parker5-6 XHK4SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
