HGW HYDRAULICS

7002-05-06

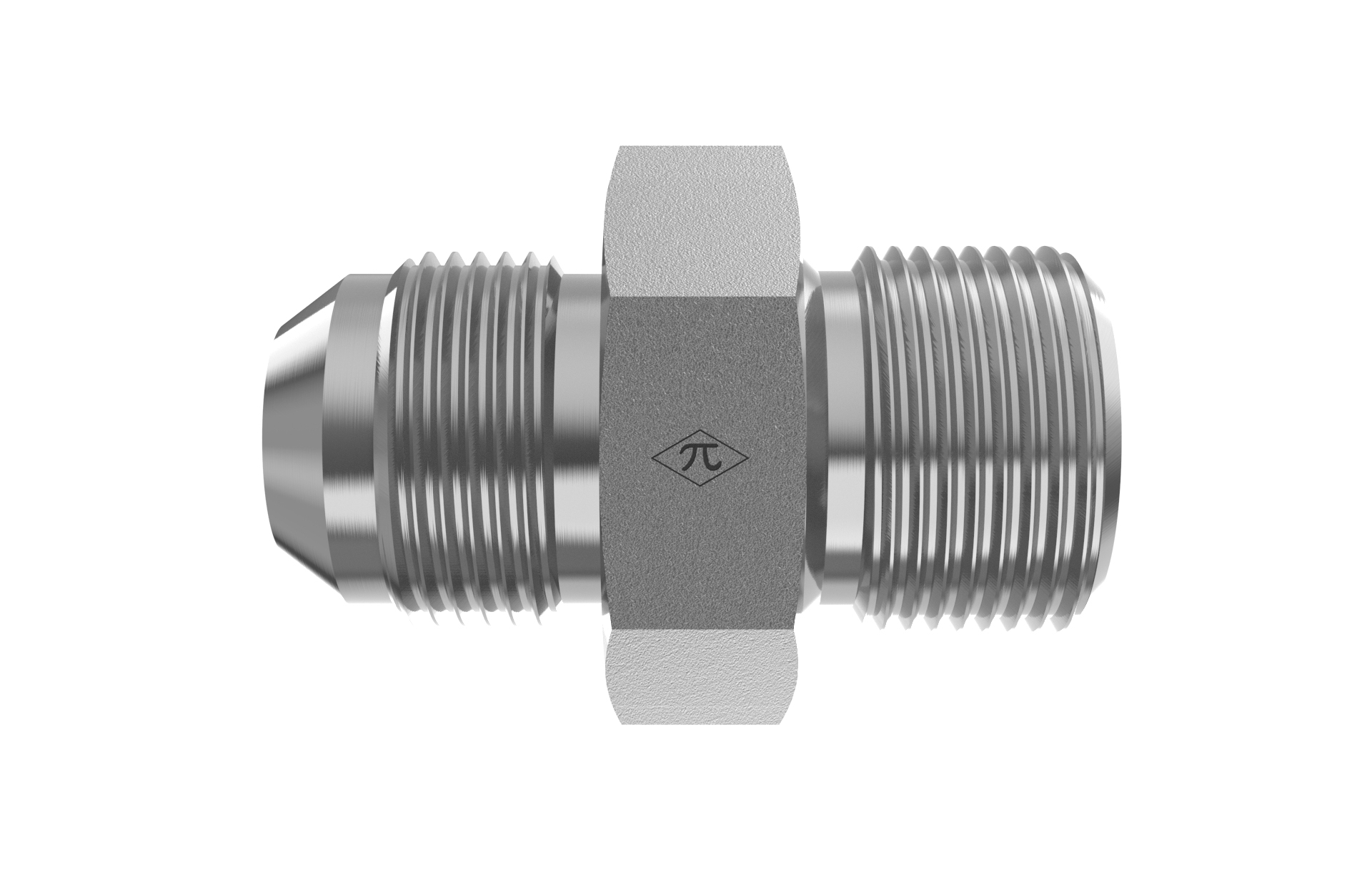

5/16" Male JIC 37° Flare × 3/8" Male BSPP · Straight Adapter

The HGW 7002-05-06 is a straight adapter joining 5/16" male JIC 37° flare to 3/8" male BSPP. Made from trivalent-zinc-plated steel, it uses SAE J514 and BS 5200 / ISO 228 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adapter
$2.68
(0) Write a Review
SKU:
7002-05-06

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD5/16"
StandardSAE J514 · Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale BSPP
Pipe Size3/8"
StandardBS 5200 / ISO 228
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.10 lb
Cross References
Aeroquip2063-6-5S
Parker5-6 XHK4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
