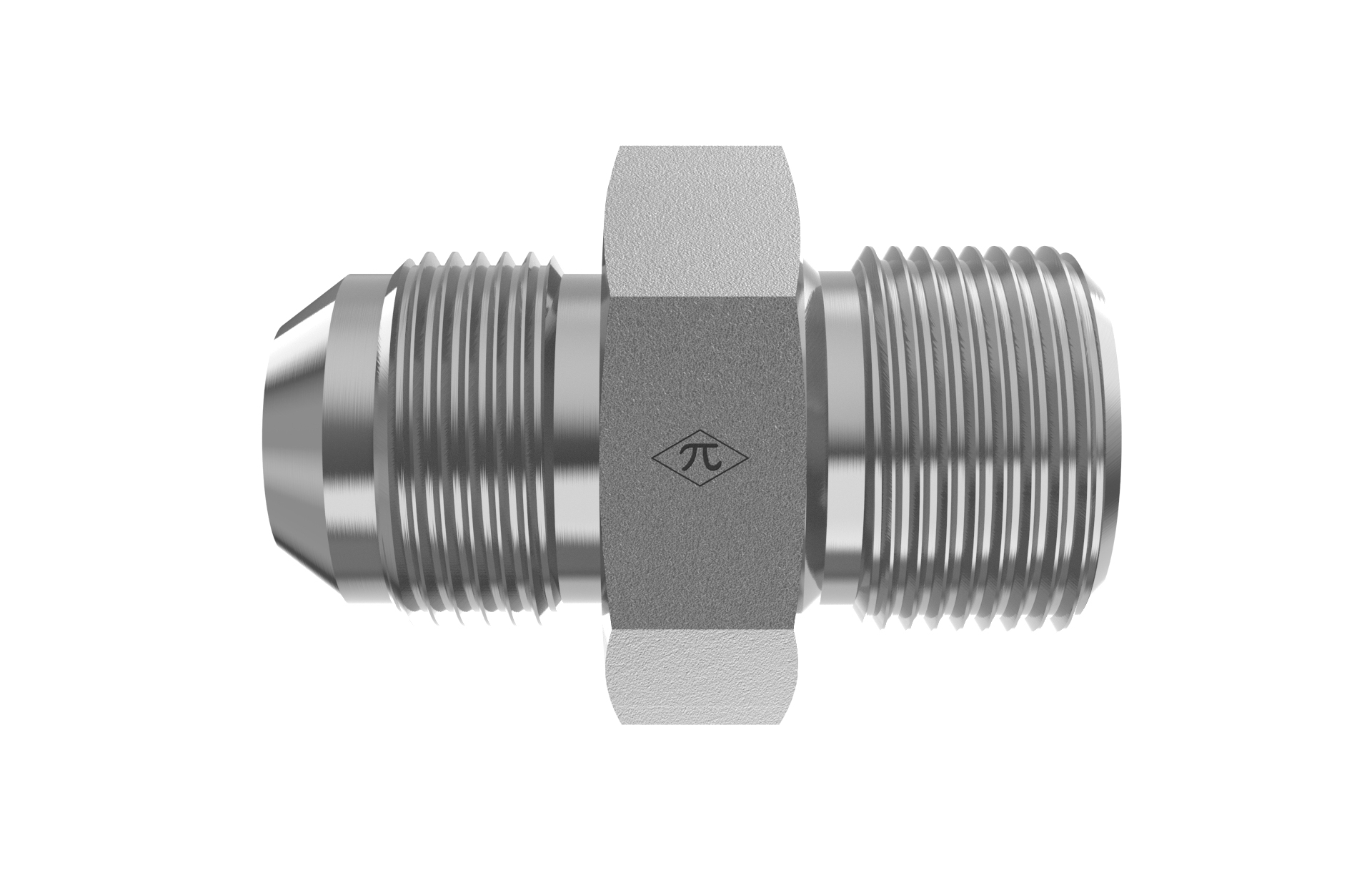

7002 product image

HGW HYDRAULICS

7002-05-08

5/16" Male JIC x 1/2" Male BSPP

7002-05-08 is a 5/16" Male JIC x 1/2" Male BSPP in the 7002 Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port.

  • Steel
  • Trivalent Zinc
  • Adapter
$7.44
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale BSPP
Pipe Size1/2"
StandardBS 5200 / ISO 228
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.15 lb
Cross References
Aeroquip2063-8-5S
Parker5-8 XHK4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
